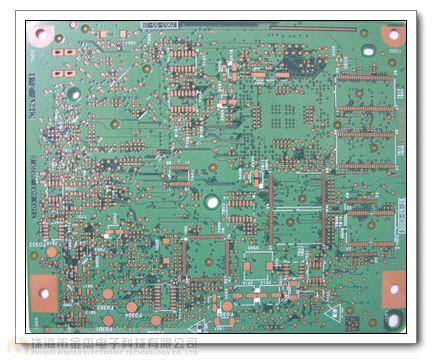

Double Single - OSP PCB

FOB Price:	1.00 - 100.00 USD/Piece
Supply Ability:	30,000 Square Meter per Month
Shipping:	Sample 5-7 days,Volume 8-15 days
Payment Terms:	L/C, T/T(Bank Transfer)

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Place of Origin:	Guangdong in China
Packaging Details:	Vacuum and carton package We can package according to customer's request

Specifications

Number of Layers : 1-16Layers
Min.Board Thickness : (2-layer-- 0.2mm ;4-layer-- 0.4mm ;6-layer -0.6mm ;8-layer --0.8mm ;10-layer -

-1.0mm )
Min Line Width/Space : 3.5mil/4mil(0.0875/0.1mm)
Min.S/M Pitch:        0.1mm(4mil)
Finish Hole (Mechanical) :    0.2mm--6.30mm
PTH Wall Thickness :   >0.025mm(1mil)
Hole Dia.Tolerance(PTH):      ±0.075mm(3mil)
Hole Dia.Tolerance(NPTH):     ±0.05mm (2mil)
Hole Position Deviation:        ±0.05mm (2mil)
Outline Tolerance:          ±0.10mm (4mil)
Twist&Bow :          ≤0.7%
Insulation Resistance :       >1012Ω Normal
Through hole resistance :       <300Ω Normal
Electric strength :         >1.3 kv/mm
Current breakdown :     10A
Peel strength :      1.4N/mm
S/M abrasion :     >6H
Thermal stress :      288°C 20 Sec
Test Voltage :      50-300V
Min. blind/buried via :    0.2mm (8mil)
Available Laminates Material:      FR-4, High TG FR-4(TG150,TG170), Aluminum Base, Halogen

Free,Rogers(Ro4003,R04350,R6006)
23 Finished board thickness tolerance :    T>=0.8mm,Tolerance:+/-8%,T<0.8mm,Tolerance:+/-10%
Out Layer Copper Thickness :       1oz--5oz
Inner Layer Copper Thickness :     1/2oz--4oz
SMT Mini. Solder Mask Width :   0.08mm
Mini. Solder Mask Clearance:     0.05mm
Plug Hole Diameter:          0.2mm--0.60mm
Impedance Control Tolerance :    +/-10%
Surface Finish :    HASL,HASL Leadfree,Immersion ENIG,Chem. Tin,Flash Gold,OSP,Gold

finger,Peelable,Immersion Silver
Insulation Layer Thickness : 0.075mm--5.00mm
Special technology : Impedance control PCB,Blind/Buried PCB,
