Shanghai Sino-Telecom Technology Co., Ltd.
China Manufacturer with main products: ADSL/ADSL2+/SHDSL/VDSL DSLAM, ADSL Modem, PON, OLT, Optical Communication System, Communication Test Meters and Network Management. |

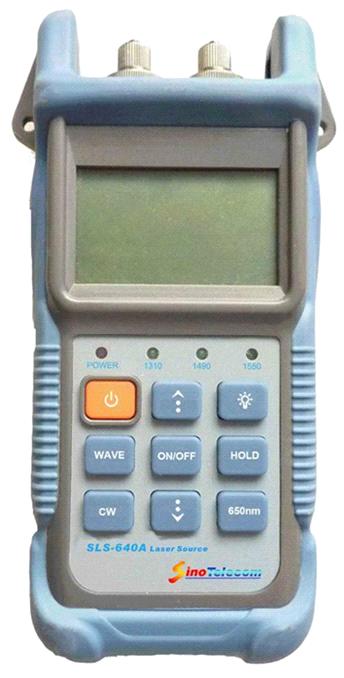

Muti-Functional Light Source (SLS640)
| Payment Terms: | T/T(Bank Transfer) |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Place of Origin: | Shanghai in China |
|---|
Specifications
SLS640 designed by Sino-Telecom is one of multifunction hand-hold light sources with high-quality, compact-size and convenient-operation.
SLS640 is engineered for the daily maintenance of the fiber communication networks. Cooperating with SPM power meter series, it is suitable for the insertion loss testing with large dynamic range for the fiber networks like PON, FTTH, OFS etc.
SLS640 provides 1310/1490/1550 built-in light source, which can be configured as continuous mode or modulated mode (270/1K/2KHz) according to user’s request. Additionally, a visible red light source (650nm) is optional for fiber trunk diagnostics in the on-field testing.
|
KEY FEATURES
|
● High stability of the output power
● One-button for wavelength switching
● Provide USB Management port which can download test data, revise thresholds and execute optical power calibration.
● Able to configure the automatic power-off or background lighting according to user's request.
● High-capacity Li battery with two recharging methods available (power adaptor, mini-USB connector)
● The instrument's ergonomic design fits comfortably
● Excel spreadsheet software provides quick and easy
● Interchangable adaptors cover FC, SC, ST styles
● The comprehensive user manual is easy to follow and will help you get started
● One-button for wavelength switching
● Provide USB Management port which can download test data, revise thresholds and execute optical power calibration.
● Able to configure the automatic power-off or background lighting according to user's request.
● High-capacity Li battery with two recharging methods available (power adaptor, mini-USB connector)
● The instrument's ergonomic design fits comfortably
● Excel spreadsheet software provides quick and easy
● Interchangable adaptors cover FC, SC, ST styles
● The comprehensive user manual is easy to follow and will help you get started
|
SPECIFICATIONS
|
| Parameters |
SLS-640
|
SLS-640A
|
SLS-640B
|
|||||
| Detected Wavelength |
1310/1490/1550nm
|
|||||||
| Laser Type |
FP-LD
|
|||||||
| Min. Output power |
-5dBm
|
|||||||
| Operation Mode | CW or 270Hz/1KHz/2KHz | |||||||
| Power Surging Range | ±0.04dB @room temperature within 15min | |||||||
| Fiber Trunk Diagnostics | 650nm red light, output power >2dBm | |||||||
| Output ports | 2 port | |||||||
| Adaptor Type | FC/APC (standard); SC/APC, ST/APC (optional) | |||||||
| Fiber Type | SMF/MMF | |||||||
| LCD Pixels | 128 X 64 | |||||||
| Battery | Li Battery/ 2000mA, 3.7V | |||||||
| Recharger | AC220V/DC5V power adaptor or USB recharging connector | |||||||
| Temperature | Operating: –10°C ~ 50°C ; Storage: –25°C ~ 70°C | |||||||
| Dimensions | 195 mm × 100 mm × 57 mm | |||||||
|
Ordering Information
|
| SLS640 Series | |
| SLS-640 | 1310nm/1490nm/1550nm, 650nm for fiber diagnostics |
| SLS-640A | From –50 ~ +26dBm dynamic range |
| SLS-640B | 1310nm/1550nm |
| Accessories | |
| FC-FC Jumper | FC/UPC to FC/UPC converting |
| SC-SC Jumper | SC/UPC to SC/UPC converting |
| ST-ST Jumper | ST/UPC to ST/UPC converting |
| USB/RS232 Convert | Convert USB to RS232 connector |
| Power Adaptor | AC220V to DC5V converting |
