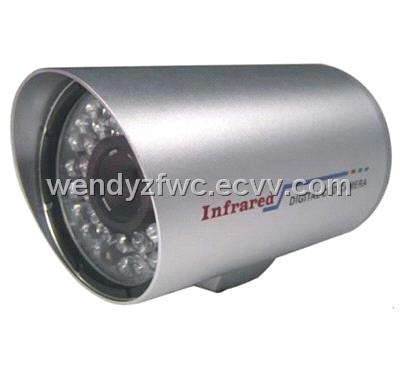

IR Camera (40m) (DS-224)

Shipping:	3
Payment Terms:	T/T(Bank Transfer), Western Union

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Shenzhen in China

Specifications

DS-224PA	F=8mm 1/4"Sharp CCD;420TV 0.5LUX,IR=40m,48pcsФ5LED
DS-224YB	F=8mm 1/3"Sony CCD;420TV 0.5LUX,IR=40m,48pcsФ5LED
DS-224YC	F=8mm 1/3"Sony CCD;480TV 0.5LUX,IR=40m,48pcsФ5LED
DS-224YD	F=8mm 1/3"Sony CCD;520TV 0.5LUX,IR=40m,48pcsФ5LED

Image Sensor 1/4" SHARP CCD or SONY 1/3" CCD
Signal System   PAL/NTSC
Effective Pixel   500(H)X582(V) or:752(H)X582(V)
Resolution   420TVL (480/520 TVL selectable)
Minimum Illumination 0.5 Lux
S/N ratio   better than 48db
Infrared Distance 40 m ( 48 PCS Ф 5 LEDs)
B.L.C.          on/off switchable
White balance    auto
Lens        8 m   Block MTV IR camera lens
Wavelength    850 m
Inner synchronous INT SYNC
Power      2.5W(CCD Camera only)+ 1.3W(IR-LED ON only)
Video output:1.0Vp-p/75Ω BNC wire
Elec shutter speed 1/60 -100000/s
Gamma Adjustment     0.45
Scanning System      2:1 interlace
Adaptor Power      DC12 V
Current     500ma
Working Temperature -15°C to +55°C(14°F～12°2F)
Related humidity   40%~90%
Waterproof standard: aluminum casing, IP67 waterproof design
