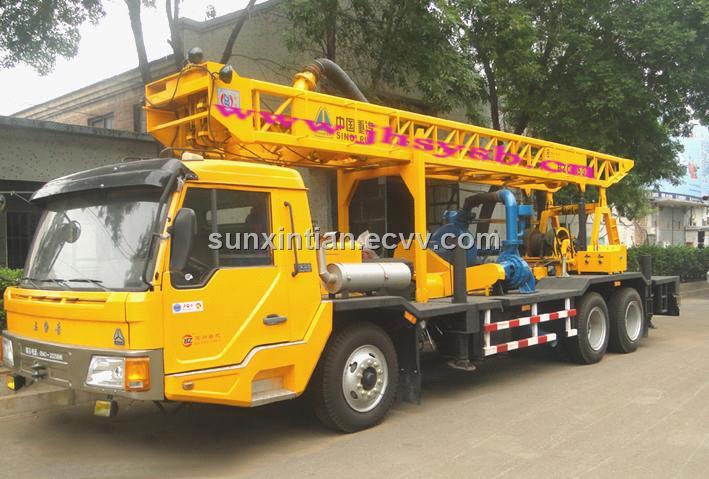

Water Well Drilling Rig (JBZ-350B)
| Supply Ability: | 1,000 Set/Sets per Year |
|---|---|
| Shipping: | within seven days at Qingdao China after production time and received the balance |
| Payment Terms: | L/C, T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Shandong in China |
|---|---|
| Packaging Details: | packed in plywood case |
Specifications
Main features:
◎JBZ-350B truck mounted drilling rig is designed by our engineers; it is adopt truck mounted and is a rotary drilling rig.
◎The truck chassis is adopt the special crane chassis of brand SINOTRUK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump, mast are setup on the chassis.
◎This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/20 mud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
◎The power of drilling rig comes from the truck engine, the rig setups distribute implement and hydraulic system.
◎We can upset the spare electric engine and clutch implement according to client’s requirement, so that the rig can work with diesel engine or electric engine.
◎We can setup a generator (15kw) , so that it is convenience to illuminate or work at night.
◎The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.
◎The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.
◎The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is populated by domestic and foreign clients.
|
Technical parameter
|
|
|||||
|
Drilling depth(M)
|
80
|
300
|
|
|||
|
Drilling diameter(mm)
|
1500
|
500
|
|
|||
|
Speed of turntable(r/min)
|
21.2; 36; 100.6; 185; 16.8(reverse)
|
|||||
|
Torque of turntable(KN.m)
|
18; 10.6; 3.8; 2.5; 22.7(reverse)
|
|||||
|
Single rope lifting capacity of windlass(KN)
|
30
|
|||||
|
the max torque of whole machine(KN.m)
|
40.55
|
|||||
|
The lifting capacity of hook(KN)
|
180
|
|||||
|
Bearing capacity of mast (KN)
|
180
|
|||||
|
The height of mast (mm)
|
11500
|
|||||
|
Bearing capacity (t)
|
25
|
|||||
|
Pipe
|
Kelly (mm)
|
108×108×7500
|
||||
|
Assistant pipe (mm)
|
Ф89×10×5500
|
|||||
|
Hydraulic pump
|
Model
|
CB-HP50/32Z
|
||||
|
Pump delivery (ml/r)
|
50/32
|
|||||
|
Rated speed (r/min)
|
3500-3700
|
|||||
|
Rated pressure(MPa)
|
20
|
|||||
|
BW850/2A
plunger pump
|
Diameter of cylinder (mm)
|
150
|
||||
|
Stroke of piston (mm)
|
180
|
|||||
|
Theory of flow (L / min)
|
600 850
|
|||||
|
Rated pressure (Mpa)
|
3 2
|
|||||
|
Pounding times (min-1)
|
58 82
|
|||||
|
Diameter of suction tube (mm)
|
127
|
|||||
|
Diameter of drain pipe (mm)
|
64
|
|||||
|
Input speed (r / min)
|
470
|
|||||
|
Input power (kw)
|
40
|
|||||
|
Overall dimensions (mm)
|
2000*1030*1400
|
|||||
|
Weight (t)
|
1.5
|
|||||
|
Truck chassis
|
Model
|
TAZ5183TXJ
|
||||
|
Drive form
|
6×4
|
|||||
|
Engine
|
Model
|
TBD226B-6Ⅱ
|
|
|||
|
Rated power(KW)
|
132
|
|
||||
|
Speed (r/min)
|
2300
|
|
||||
|
Size (L*W*H)(mm)
|
11420×2500×2500
|
|||||
|
Electric generator
|
Model
|
MF
|
||||
|
Rated power (kw)
|
15
|
|||||
|
Rated voltage(v)
|
400
|
|||||
|
Rated current(A)
|
27
|
|||||
|
Speed (r/min)
|
1500
|
|||||
|
Frequency(Hz)
|
50
|
|||||
|
Protection level
|
IP21
|
|||||
|
Insulation Class
|
H
|
|||||
|
The best working gear (or speed)
|
5thgear(1000-1400r/min)
|
|||||
|
The highest speed(Km/h)
|
75
|
|||||
|
Weight (kg)
|
19340
|
|||||
|
Transport size(L*W*H)(mm)
|
12160*2490*3400
|
|||||
|
Working size(L*W*H)(mm)
|
11110*2490*13110
|
|||||
