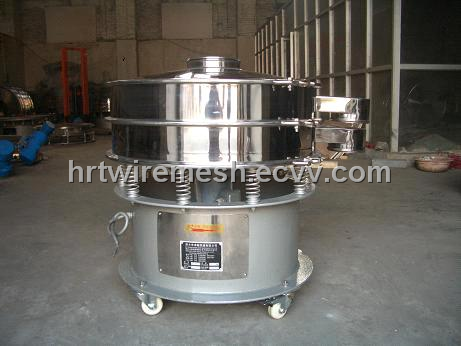

Vibration Sieve Machine

FOB Price:	70.00 - 600.00 USD/Set
Supply Ability:	10 Set/Sets per Month
Shipping:	20 days
Payment Terms:	L/C, T/T(Bank Transfer), Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Hebei in China
Packaging Details:	up to customer

Specifications

Vibration Sieve Machine :

1. Application:

Suitable for powder and granular, XZS is of high efficiency and supplied with selected mesh so that the different sizes of material can be screened at one time. It is widely used in metallurgy, chemical, abrasive, glass, abrasive, construction, food and light industries.

2. Technical Data:

1) amplitude: 2mm-6mm

2) overall package(LxWxL)

3) noise: 75dB-80dB(decibel)

4) motor:three phase AC 380V, rotary speed is 1440rpm

5) color: gray (PVC coating)

6) Gross weight: 300kg

7) mesh: as required by user

8) screening efficiency: for material volum density 1.8/m3, after one hour vibration, particle size 600-700μm, the screening efficiency is 80-90%.

9) Capacity: depending on the material density, mesh, screener diameter, and mesh effective area. 10) Configuration of the machine: 520x600x1300mm

3..Specifications:

Type	XZS400	XZS600	XZS800	XZS1000	XZS1200	XZS1500
Effective screen dia.(mm)	φ330	φ550	φ800	φ930	φ1120	φ1460
Effective screen area(sqm)	0.08	0.24	0.50	0.68	0.98	1.67
Maxium partical size(mm)	20	30	30	50	50	60
Vabration frenquency(times/min)	1500	1500	1500	1500	1500	1500
Power(KW)	0.25	0.55	0.75	1.5	1.5	2.2
Mesh specifications
