Yucheng Dadi Machinery Manufacturing Co., Ltd.
China Manufacturer with main products: disc harrow, disc plough, mower, rotary tiller, disc blade, seeder, harvester |
Chisel plough
| FOB Price: | 100.00 - 1,500.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | According to order quantity |
| Payment Terms: | L/C, T/T, / |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Iron shellframe box |
Specifications

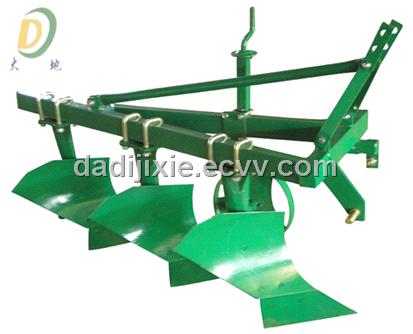

Chisel plough
Furrow width :180-350 mm
Working width:360-1700 mm
No. of bottoms :2-7
Matched power: 12-140hp
The Furrow plough
are full mounted and sui table for ploughing on the cultivated the land with the soil resistance no more than 1.2kg.The plow is simple in structure and light in weight.Suitable working scope is wide,after cultivation,the landsurface is leveling and the furrow is narrow and the soil is well crushed and turnde over.
are full mounted and sui table for ploughing on the cultivated the land with the soil resistance no more than 1.2kg.The plow is simple in structure and light in weight.Suitable working scope is wide,after cultivation,the landsurface is leveling and the furrow is narrow and the soil is well crushed and turnde over.
Main Specifications:
| Type | 1L-218 | 1L-220A | 1L-220 | 1L-320 | 1L-420 | 1L-520 |
| No. of bottoms | 2 | 2 | 2 | 3 | 4 | 5 |
| Furrow width (cm) | 18 | 20 | ||||
| Total working width (cm) | 36 | 40 | 40 | 60 | 80 | 100 |
| Plowing depth (cm) | 14-16 | 14-22 | ||||
| Overall dimensions (L×W×H) (cm) | 124×70×96 | 180×82×104 | 240×100×104 | 296×120×104 | ||
| Weight(kg) | 50 | 72 | 80 | 115 | 150 | 215 |
| Productivity(ha/h) | 0.14-0.20 | 0.32-0.60 | ||||
| Trans. Clearance (cm) | ≥37 | |||||
| Linkage | three-point mounted | |||||
| Matched Power(kw) | 8.8-13.3 | 8.8-13.3 | 11-18.3 | 18.3-25.7 | 22-33 | 36.7-44 |
