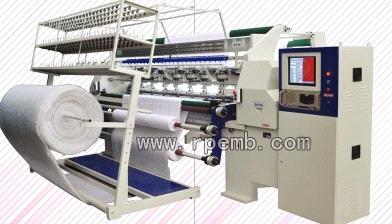

RPQ Multi needle shuttle quilting machinery

FOB Price:	10000.00 - 50000.00 USD/Set
Supply Ability:	10 Set/Sets per Week
Shipping:	1 week
Payment Terms:	L/C, T/T(Bank Transfer), D/A, D/P

In Stock

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Guangdong in China
Packaging Details:	sea proof package

Specifications

Product details:

This quilting machine adopts most advanced quilting machine computer control system; Lowest thread breakage and best quilting stitch effect to ensure beautiful quilting result.

RPQ 94"-3 digital control shuttle quilting machine:
1. Digital control model; Big shuttle
2. 94": 94inch width (2388mm)
3. Three needle row
4. Overall dimensions: 4700*1200*1650mm

5: Weight: 3400kg
6: Running speed: 200-500rpm
7: Needle distance: 1inch Needle row distance : 3inch
8. Rating power: 3.5kw
9. Thickness: ≤20mm
10. Max pattern size is 12inch by 12inch

*Saddles and rollers driven by Panasonic servo motor ;

*The revolution of the spindle controlled by Panasonic frequency conversion control devices.

*Large number of built-in quilting patterns for your choice.

*Easy and quick make new designs.

*360 degrees random quilting.

*Tack and jump function included

*stitches between 2mm-6mm adjustable.

*Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.

*Simulation display of quilting.

*Automatic needle raising and location brake system.

*Function of automatic stop on breaking of thread(optional)

More than 20 years experience in the shuttle quilting machinery field helped our factory to built the best machinery at lowest cost. Please send us your enquiry today!

Main features:

         1. Digital control model; Big shuttle
         2. 94": 94inch width (2388mm) or 64, or 128" at customers choice.
         3. Three needle row or two needle row at customer choice
         4. Overall dimensions: 4700*1200*1650mm for 94 inch machine. We can free upgrade to 96" no extra cost.
         5. Speed 550RPM working very stable .

6. Lowest thread breakage.

7. Latest computer control system ensure precision and speed.

8. Built-in quilting punching software.

9. Running parts made by aluminum wearing and looks fantastic.

10. Shuttle size at your choice.

11. Best service online .

12. Can do cotton thread without thread breakage.

13. No need oil cam.

14. Water proof . Dust Proof structure. No oiling needed for cams!

15. Lasting life for 10 years or more !
