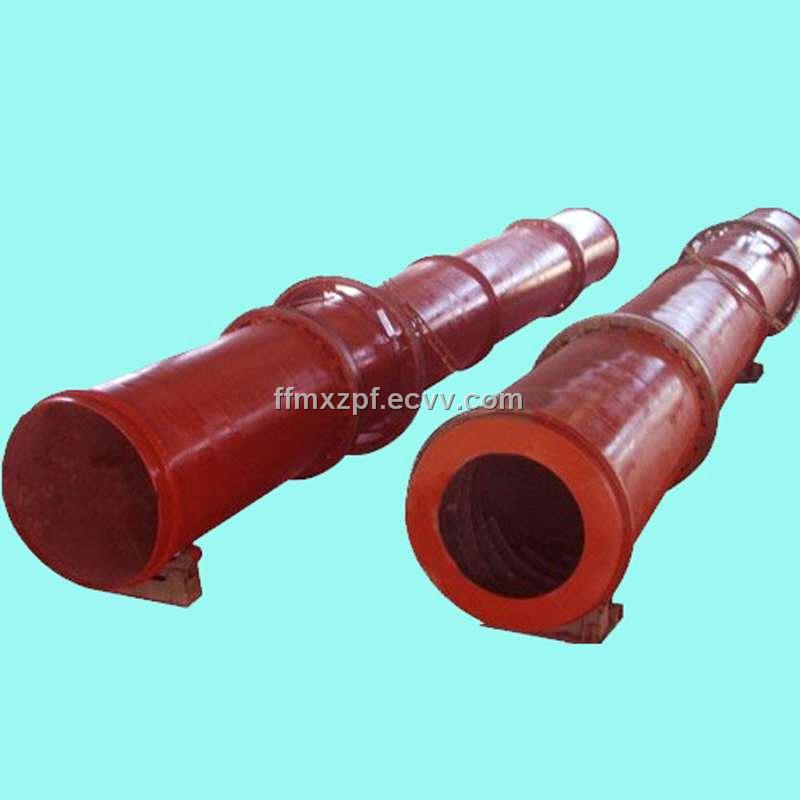

Chicken Manure Dryer

FOB Price:	15000.00 - 25000.00 USD/Set
Supply Ability:	100 Set/Sets per Year
Shipping:	within 15 days after received your deposit
Payment Terms:	T/T(Bank Transfer)

In Stock

Inquiry Now

Product Details

Place of Origin:	Henan in China
Packaging Details:	Export Standard

Specifications

Chicken Manure Dryer

1.reliable quality,
2.energy saving,
3.stable operation,
4.durable using,

Chicken Manure Dryer General Situation

Market prospects of organic fertilizer is very wide, it creates economic benefits are considerable. Pure chicken manure organic fertilizer force, holding effect for a long time, has been recognized by the majority of users. Pure chicken manure is organic fertilizer, bio-fertilizer in the main raw material. The use of chicken manure dryer feed resources for the opening, lower feed costs, reduce environmental pollution has a good effect.

Chicken dung dryer can be as high as 70% -80%, a direct drying fecal water content to 13% safe storage of water, the whole process in a closed system, thereby reducing the drying process on the environment. The finished product after drying green pollution-free planting yes yes the best selection of fertilizers, crop growth and the rich in a variety of essential nutrients.

Chicken Manure Dryer Works Theory

Mainly by chicken manure dryer heat source, on the feeder, feeding machine, rotary drum, the material crushing device, a feeder, induced draft fan, discharge and power cabinet consisting of drying equipment; dehydration of the wet material added to drying equipment, uniformly distributed in the drum turning copy the board device, the material dispersed in the drying equipment in full contact with the hot air to speed up the drying heat and mass transfer . During the drying process, with a gradient of copy material in the hot plate and under the effect of temperament, to a star other drying equipment exhaust discharge valve products.

Chicken Manure Dryer Features

1.The fine structure of chicken manure dryer,simple resistance, stores running smoothly through the cylinder, operating convenience.

2.Chicken drum dryer drying their high degree of mechanization, large production capacity, continuous operation.

3.Wide application, product, good uniformity of drying; dry but can also achieve the purpose of sterilization and deodorization.

4.Few failures,low power consumption and low maintenance costs.

The Main Technical Parameters of Chicken Manure Dryer

Type (mm)	Gradient (%)	Rotate Speed(r/min)	Inlet Temperature (°C)	Power (Kw)	Volume (m³)	Output(t/h)	Weight (t)
Φ600×6000	3-5	3-8	≤700	3	1.69	0.5-1.5	2.9
Φ800×8000	3-5	3-8	≤700	4	4.01	0.8-2.0	3.5
Φ800×10000	3-5	3-8	≤700	4	5.02	0.8-2.5	4.5
Φ1000×10000	3-5	3-8	≤700	5.5	7.85	1.0-3.5	5.6
Φ1200×10000	3-5	3-8	≤700	7.5	11.30	1.8-5	14.5
Φ1200×12000	3-5	3-8	≤700	11	13.56	2-6	14.8
Φ1500×12000	3-5	2-6	≤800	15	21.19	3.5-9	17.8
Φ1800×12000	3-5	2-6	≤800	18	30.52	5-12	25
Φ2200×12000	3-5	1.5-6	≤800	18.5	45.59	6-15	33
Φ2200×18000	3-5	1.5-6	≤800	22	68.38	10-18	53.8
Φ2200×20000	3-5	1.5-6	≤800	30	75.98	12-20	56
Φ2400×20000	3-5	1.5-5	≤800	37	90.43	18-30	60
Φ3000×20000	3-5	1.5-5	≤800	55	141.3	25-35	78
Φ3000×25000	3-5	1.5-5	≤800	75	176.6	32-40	104.9
