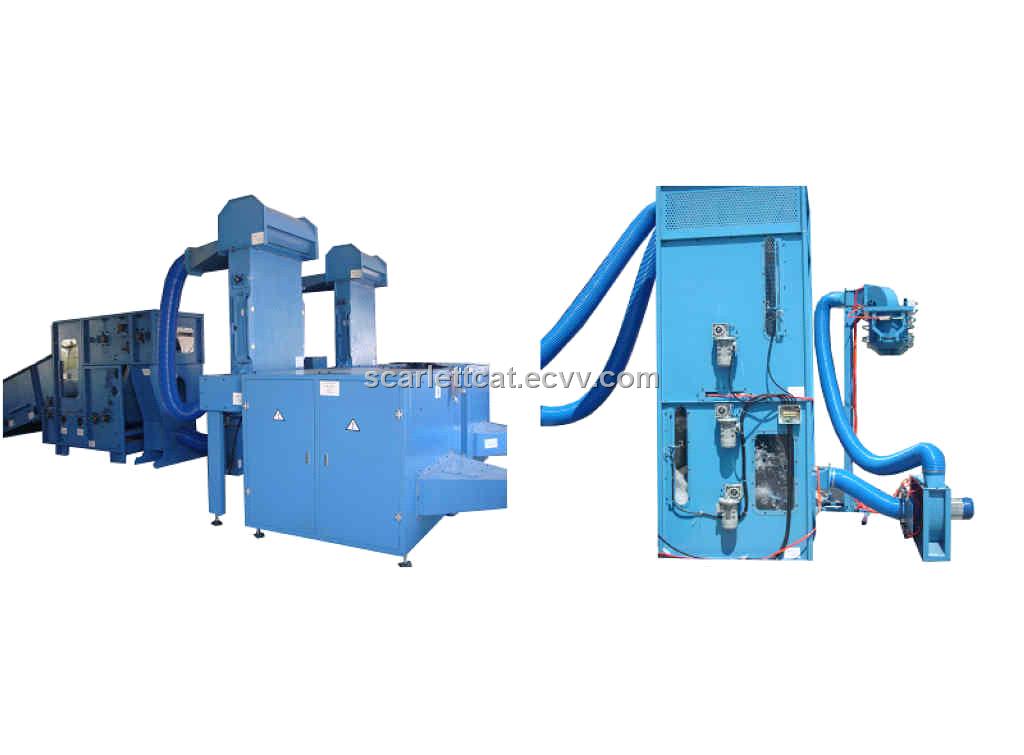

Automatic Ball Fiber Filling Machine

Specifications

• Item no.: QL006C
• Layout Dimension: 15000*3300*3600mm
• Equipment: Bale opener--3-way blower--Feeding hopper*2--Ball fiber machine*2--Blower*2--Mixer--filling device
• Voltage: 480v 60Hz 3phase
• Power: 40.85kw
• PLC: Siemens
• Material: Conjugate hollow siliconized polyester fiber 7D/15D * 51/64mm
• Capacity: Min.200-240kg/h
• Operator: 1 person
• Weight: Min. 7600kg

• Automatic ball fiber filling machine is mainly used to fill ball fibre into a bag.
• The machine can be arranged for non-airing bag such like plastic bag, also airing bag such like plastic woven bag.
• The filling device diameter can be produced by clients requires.
• PLC control system that can be handled by only 1 person working for the filling device, as the whole bale raw material can be already contained by the bale opener and sent to the ball fiber machine belt automatically
• The filling time can be already set up from the control screen according to the weight and bag size against the testing data.
• Double hand control system saves labour well.
• All electricity key parts are adopted by the most famous world brand such like Siemens and Omron that is stable quality and has international service department in your local area.
•  The machine is running calmly because of the well dynamic balance processing.
