Wuxi Zhengqing Environmental Protection Equipment Plant
China Manufacturer with main products: Flotation, Mud Scraper |
Related products from verified members
Specifications
Quick Details
Place of Origin: Jiangsu China(Mainland) Brand Name: Zhengqing
Model number: Model F Flotation Device Quality: Excellent
Design: According to customer’s requirements
Packing & Delivery
Packaging Detail:
Delivery Detail:
Specifications

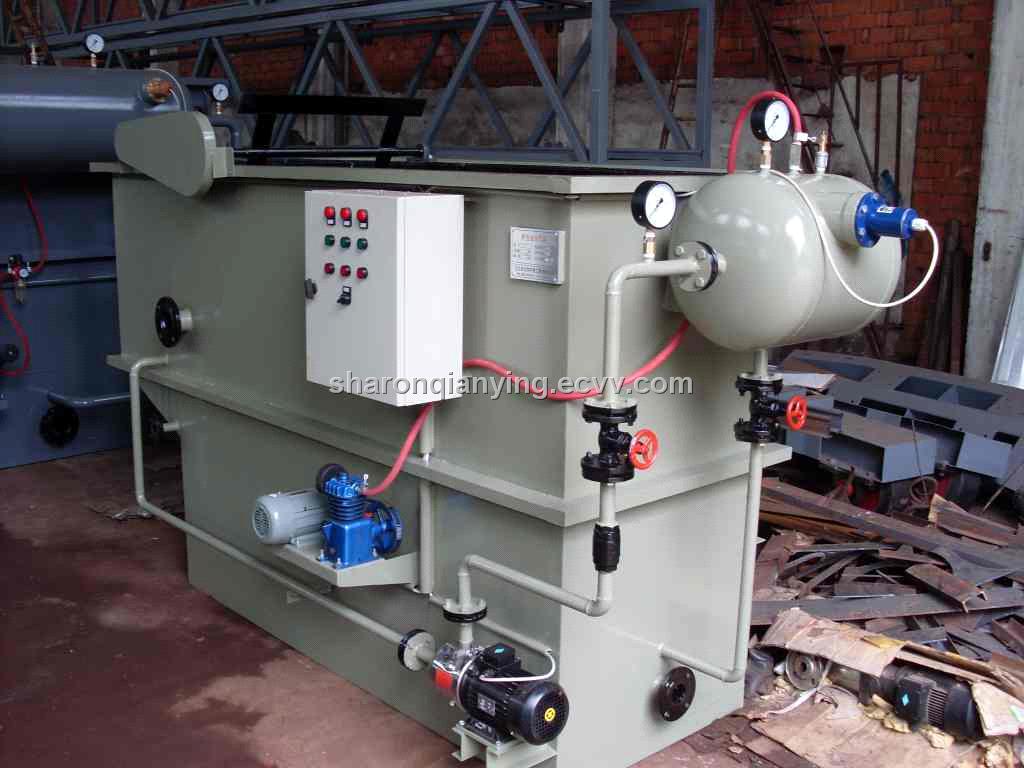

Model F Flotation Device is mainly for solid-liquid separation.
Main advantage:
1. Flotation separation is the most effective method to remove SS whose density is similar with water.
2. Model F serious combination flotation collected advantages from flotation devices all over the nation and has been used widely in wastewater treatment fields.
save power
3. Simple operation
4. Easy management.
5. The gas solvent system apply patent technology (Patent No. 86209262), the gas solve efficiency is very high.
6. The whole system can be controlled integratedly.
DAF Application Area
1. Paper making water recycle
2. Remove heavy metal ion in water.
3. Separate oil and dust in petroleum wastewater.
4. Remove SS from curry wastewater.
5. Remove SS and chroma from Printing and dyeing wastewater
6. Solid-liquid separation of sludge and membrane after bio-treatment.
7. Sludge concentration (treat capacity is 20-30% of equipment capacity, except special equipment. However, we can design separately).
Model and Specification
|
Model
|
Capacity
(m3/h)
|
Gas water
(m3/h)
|
Separate area
(m2)
|
Motor power
(kw)
|
Gas motor
(kw)
|
Scraper
(kw)
|
Weight
(kg)
|
Operation weight
(kg)
|
|
F-3
|
2～3
|
0.5～1
|
1
|
1.5
|
0.37
|
0.12
|
1100
|
3600
|
|
F-5
|
3～5
|
1～2
|
1.5
|
2.2
|
0.37
|
0.25
|
1400
|
4400
|
|
F-10
|
5～10
|
2～3
|
3
|
3
|
0.37
|
0.25
|
1900
|
9400
|
|
F-15
|
10～15
|
3～5.
|
4.5
|
4
|
0.37
|
0.25
|
2400
|
12400
|
|
F-20
|
15～20
|
5～7
|
5.4
|
4
|
0.37
|
0.25
|
3000
|
15000
|
|
F-30
|
20～30
|
6～10
|
8
|
5.5
|
1.5
|
0.37
|
3700
|
20700
|
|
F-40
|
30～40
|
8～13
|
11
|
5.5
|
1.5
|
0.37
|
4300
|
26300
|
|
F-50
|
40～50
|
15～20
|
13.5
|
7.5
|
1.5
|
0.37
|
4950
|
32950
|
|
F-60
|
40～60
|
20～25
|
19.5
|
7.5
|
1.5
|
0.55
|
5900
|
44800
|
|
F-70
|
60～70
|
20～25
|
19.5
|
7.5
|
1.5
|
0.55
|
6000
|
44800
|
|
F-80
|
70～80
|
25～28
|
21.5
|
15
|
1.5
|
0.55
|
6700
|
51700
|
|
F-100
|
90～100
|
30～35
|
28
|
15
|
1.5
|
0.55
|
7800
|
67800
|
