Home  >Products Catalog > EPS/Wood Mold engraving machine > JIAXIN Foam Engraving Machine (JX-1625E)

JIAXIN Foam Engraving Machine (JX-1625E) SafeBuy Supplier Member

FOB Price: 3,000.00 - 18,000.00 USD/Set
Supply Ability: 60 Set/Sets per Year
Shipping: 30 days arrived the port
Payment Terms: L/C, T/T, Western Union
Update Time: 2016/9/6
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: Steel frame and plywood box

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 12 months
  • Certification: CE,CIQ,QC,SGS
  • Weight: 3800kgs
  • Power(W): 5.5KW
  • Voltage: AC380V/50Hz

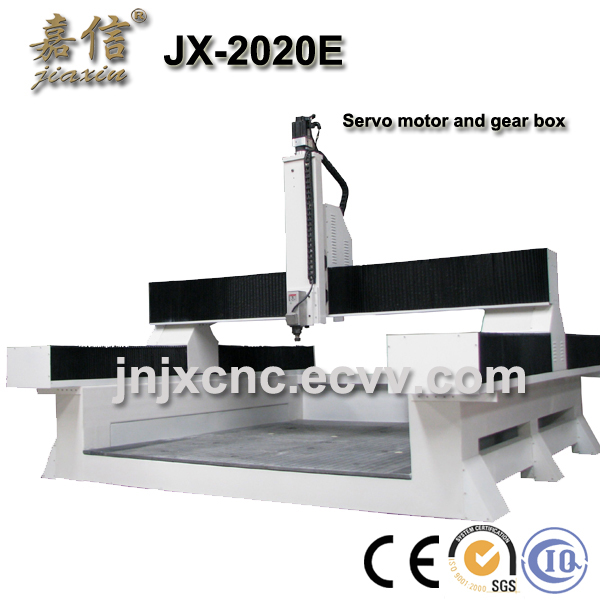

  • Model Number: JX-2020E
  • Brand Name: JIAXIN
  • CNC or Not: CNC
  • Condition: New

Specifications

Model
JX-1625E
X,Y working area
1600mmx2500mm
Z working area
 1100mm
Max feeding height
500mm
Table size
1640mmx2700mm
Max.Speed
30m/min
Max. carving speed
20m/min
Resolution
0.025mm
Positioning accuracy
 0.05mm
Spindle power
5.5KW
Spindle rotating speed
0-24000rpm
Surroundings for software
Windows2000/XP
work mode
Step motor
Work voltage
AC380V/50Hz

Applicable industry
This molds making machine is mainly used for the following two industrial fields.
1.molds industrial: It engraves all kinds of large nonmetallic molds, especially automotive foam molds, wooden ships molds,
aviation and train wood molds.
2.musical instrument industry: Engrave 3-D large instruments and shaping.

Performance Characteristics
1. Imported high precision rack transmission ensures stable movement and high
 accuracy of machine

2. Well-known brand domestic high power spindle, water cooling, frequency conversion ,
brushless, low noise, strong cutting strength and ensuring long time mass processing

3. Drivers with high definition subdivision ensure fast speed and high accuracy.

4.Intelligent processing cross-border protection, can avoid the mechanical impact
 originated by the program out of the working area during the processing.

5. Software: Compatible with CAD/CAM software such as Type3/artcam/Ucancam etc.

Guarantee & aftersales service
Guarantee for 12 months,24-hour technical support by email or calling
User-friendly English manual and Video CD for machine using and maintaining.
