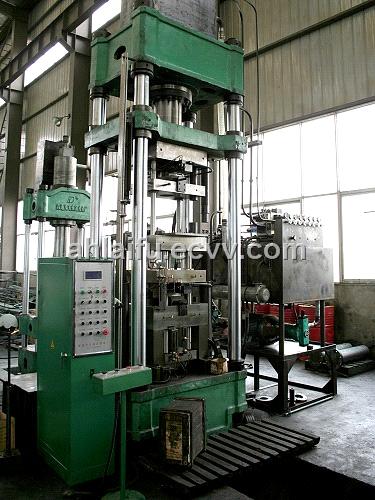

4-Nos Hard Chrome Pillars Type Presses

Inquiry Now

Product Details

Place of Origin:	Anhui in China

Specifications

Detailed Product Description

This series machines, are designed to perform sheet metal drawing, bending, pun-ching, extruding and forming process for various

This series machines, are designed to perform sheet metal drawing, bending, pun-ching, extruding and forming process for various industries such as automobile, tractor, wagon, ship, motor, instrument, power equipment and aviation. It also can be used for drawing of various high strength alloy plate. The moving working table and PLC control system are adopted.

Main Technical Parameter

Model		YN27-630	YN27-630A	YN27-1250	YN27-1300	YN27-1600A
Slide capacity kN		6300	6300	12500	13000	16000
Hyaraulic cushion capacity kN		1000	2500	12500	4000	5000
Slide stroke mm		750	750	750	1500	1500
Max shut height mm		1450	1100	1450	2200	2200
Stroke of hydraulic cushion mm		350	350	350	400	400
Bottom area siae of slide mm		1450×1450	2800×1800	1700×1700	5500×270	4500×2400
Bolstor dimensions mm		1450×1450	2800×1800	1700×1700	5500×270	4500×2400
Bolster movement mm		385	2000	385	3000	2500
Slide Speed	Idle down mm/s	150	400	150	250	350
	Drawing mm/s	10	10-30	10	>10	5-50
	Return mm/s	68-80	300-350	68-80	200	250
Ove rall dimensoins(LR×FB×H) mm		2580×1450×5100	5800×2800×6250	2900×1900×6350	7300×2800×8120	7600×3700×9300
Motor power kW		45	190	90	270	290
Weight(approx)		30	80	72	280	290
