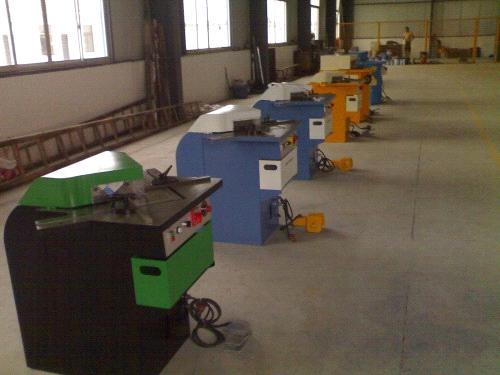

Variable Hydraulic notching machine(Shearing Angle)

Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Place of Origin:	Anhui in China

Specifications

tailed Product Description

Applicably in cutting anglesand edges of soft steel and stainless steel plates shown in below drawing

Applicably in cutting anglesand edges of soft steel and stainless steel plates shown in below drawing

Type (Model)	MILD STEEL CUTTING CAPACITY (mm)	SIZE MAX.CUTTING ANGLE (mm)	STROKE (mm)	MOTOR	OIL HYDRAULIC				GROSS WEIGHT	PACKING SIZE (LxWxH) (mm)
Type (Model)	MILD STEEL CUTTING CAPACITY (mm)	SIZE MAX.CUTTING ANGLE (mm)	STROKE (mm)	MOTOR	CYLINDER	MAX.PRESSURE	PUMP	TANK	GROSS WEIGHT	PACKING SIZE (LxWxH) (mm)
Q28Y-220	4.0	220x220	50	3HP	15TON	140KG/cm²	30/MIN(60HZ)	25/MIN(50HZ)	950KG	1170 x 990 x 1300
Q28Y-220S	6.0	220x220	60	5HP	20TON	140KG/cm²	30/MIN(60HZ)	25/MIN(50HZ)	1000KG	1170 x 900 x 1300
