Mechanical Punching Machine

FOB Price:	5,150.00 - 5,850.00 USD/Set
Supply Ability:	50 Set/Sets per Week
Shipping:	20 day
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Anhui in China
Packaging Details:	By lift into container and fix stable in four sides Plastic film wrapped Steel pallet packed

Specifications

Mechanical Punching Machine

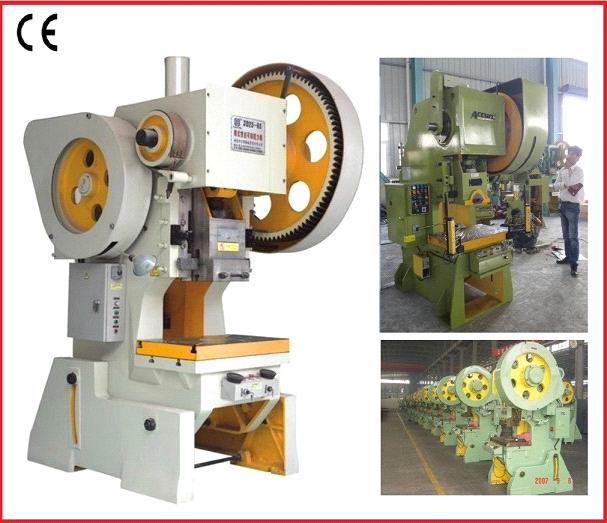

c-Frame Inclinable Mechanical Power Press / Mechanical Press / Mechanical Punching Machine
Punching Machine funtions:

◆ Adopts horizontally placed crankshaft.

◆ Rigid rotated bond clutch.

◆ JD23-63A/80A adopts dual rotated bond structure to overcome rebound of punching effectively.

◆ Manual shut height adjustment with scale display.

◆ The type with “ A” equipped with emergency stop device, which could make the slide stop at 0° ～135° area and equipped with light curtain protector as well.

		JC23-6.3	J23-10B	J23-16	J23-16B	J23-25A	JG23-35A
Capacity	kN	63	100	160	160	250	350
Nominal Force	mm	3	4	5	5	5	5
Slide Stroke	mm	35	60	55	70	80	100
SPM	min^-1	170	145	125	125	60	53
Max. Die Height	mm	110	130	160	170	180	180
Die Height Adjustment	mm	30	35	45	45	70	75
Between Slide Center & Frame	mm	110	130	160	170	210	200
Bolster (FB× LR)	mm	200× 310	240× 360	300× 450	320× 480	400× 600	380× 610
Bolster Opening (Up Hole Dia. × Dpth× Low Hole Dia. )	mm	Φ 60	Φ 120× 20 × Φ 100	Φ 100	Φ 100	Φ 120	Φ 130
Bolster Thickness	mm	40	50	40	60	70	70
Bolster Opening (Dia. × FB× LR)	mm	Φ 140× 110× 160	Φ 130× 90 × 180	Φ 210× 160 × 240	Φ 210× 160 × 240	Φ 180× 130 × 260	Φ 180× 130 × 290
Slide Area (FB× LR)	mm	120× 140	150× 170	180× 200	180× 200	210× 250	210× 250
Shank Hole (Dia. × Dpth)	mm	Φ 30× 55	Φ 30× 55	Φ 40× 60	Φ 40× 60	Φ 40× 70	Φ 40× 60
Max. Inclined Angle	°	30°	25°	25°	25°	25°	25°
Between Columns	mm	150	180	220	220	260	300
Motor Power	kW	0.75	1.1	1.5	1.5	2.2	3
Outline Size (FB× LR× H)	mm	780× 610 × 1505	915× 700 × 1690	1150× 900 × 1910	1150× 900 × 1910	1325× 990 × 2140	1490× 1080 × 2200
Net Weight	kg	360	600	1080	1080	1900	2440

		JG23-40A	JC23-63A	JD23-63A	J23-80A	JD23-80A
Capacity	kN	400	630	630	800	800
Nominal Force	mm	6	8	8	9	9
Slide Stroke	mm	120	120	120	130	130
SPM	min^-1	55	50	50	45	45
Max. Die Height	mm	220	270	270	290	290
Die Height Adjustment	mm	80	80	80	100	100
Between Slide Center & Frame	mm	260	260	260	270	300
Bolster (FB× LR)	mm	480× 710	480× 710	480× 710	520× 860	580× 860
Bolster Opening (Up Hole Dia. × Dpth× Low Hole Dia. )	mm	Φ 220× 25 × Φ 180	Φ 220× 45 × Φ 180	Φ 200× 45 × Φ 180	Φ 200× 45 × Φ 180	Φ 200× 45 × Φ 180
Bolster Thickness	mm	80	90	90	100	100
Bolster Opening (Dia. × FB× LR)	mm	Φ 200× 150 × 300	Φ 250× 200 × 340	Φ 250× 200 × 340	Φ 250× 200 × 340	Φ 280× 220 × 380
Slide Area (FB× LR)	mm	270× 320	280× 320	280× 320	280× 380	280× 380
Shank Hole (Dia. × Dpth)	mm	Φ 50× 70	Φ 50× 80	Φ 50× 80	Φ 60× 75	Φ 60× 75
Max. Inclined Angle	°	25°	25°	25°	20°	20°
Between Columns	mm	300	350	350	410	410
Motor Power	kW	4	5.5	5.5	7.5	7.5
Outline Size (FB× LR× H)	mm	1600× 1180 × 2310	1810× 1350 × 2640	1885× 1350 × 2670	1810× 1410 × 2790	1990× 1410 × 2945
Net Weight	kg	3180	4000	4970	4790	5970
