Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

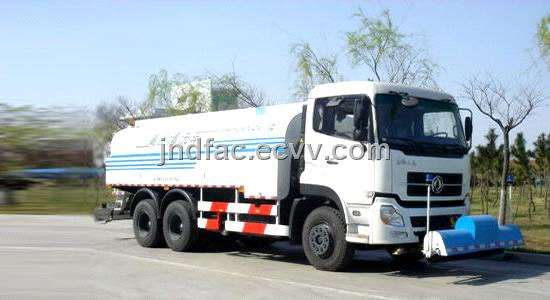

High-Pressure Cleaning Truck (6*40)
| FOB Price: | 20,000.00 - 120,000.00 USD/Set |
|---|---|
| Supply Ability: | 2,000 Set/Sets per Year |
| Shipping: | within 30 workdays |
| Payment Terms: | L/C, T/T(Bank Transfer), Western Union |
| Place of Origin: | Hubei in China |
|---|---|
| Packaging Details: | according to customer's demand |
Specifications
| Technique parameter | |||
| Name | Dongfeng Tianlong double rear axle high-pressure cleaning truck | L×W×H mm | 10720,9790×2495×3030(mm) |
| Chassis Model | DFL1250A8 | Cargo body Dimension(mm) | ××(mm) |
| total mass | 25000(Kg) | Approach/Departure angle | 13/11,20/11(°) |
| Rated mass | 12270,12520,11990,11570,11290(Kg) | front/rear suspension | 2390/2680,1460/2680(mm) |
| curb mass | 12600,12350,12880,13300,13580(Kg) | Max. speed | 90(km/h) |
| Engine | manufacturer | displacement(ml) | power(kw) |
|
ISDe230 30 ISDe245 30 ISDe270 30 C245 33 C230 33 C260 33 |
Dongfeng Cummins Engine Co., Ltd. |
6700 6700 6700 8300 8300 8300 |
169 180 198 180 170 191 |
| Emission standards | GB3847-2005,GB17691-2005EuroⅢ | ||
| Axle | 3 | front tread | 1986/1860/1860(mm) |
| wheelbase | 4350+1300,4350+1350 | rear tread | 1860/1860(mm) |
| tyre | 10 | tyre size | 10.00-20,10.00R20,11.00-20,11.00R20 |
| fuel type | diesel | spring | 8/9,8/10 |
| axle load | 7000/18000 (double axles) | cab passenger | 2 |
| Note |
Tank dimension (long axle ×short axle× length)(mm)1.:2186×1420×5500,
Tank capacity:12.85m³
2.2186×1420×5060,Tank capacity:11.83m³.
|
||
|
Special
performance |
High-pressure cleaning truck is modified on the chassis of secondary type, and the upper structure is tank, which is equipped with high pressure water pump. The cleaning width of spray frame is 2.5m-3.5m and can be controlled freely. It is widely used for cleaning city street and square; left and right spray is used for cleaning curb, barrier area and sidewalk.
|
||
|
|
|
||
