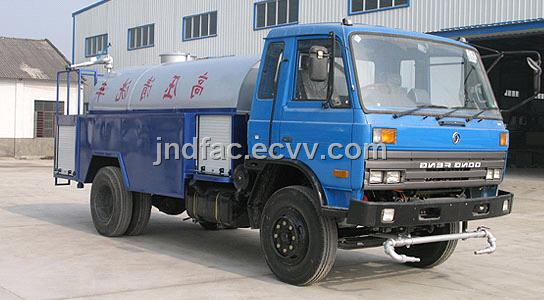

Dongfeng High-Pressure Cleaning Truck

FOB Price:	20,000.00 - 120,000.00 USD/Set
Supply Ability:	2,000 Set/Sets per Year
Shipping:	within 30 workdays
Payment Terms:	L/C, T/T(Bank Transfer), Western Union

In Stock

Inquiry Now

Place of Origin:	Hubei in China
Packaging Details:	according to customer's demand

Specifications

Technique parameter
Name	Dongfeng 145 high-pressure cleaning truck	L×W×H mm	7320×2490×2950(mm)
Chassis Model	EQ1108KJ	Cargo body Dimension(mm)	××(mm)
total mass	10495(Kg)	Approach/Departure angle	25/14(°)
Rated mass	4500(Kg)	front/rear suspension	1205/2165(mm)
curb mass	5800(Kg)	Max. speed	90(km/h)
Engine	manufacturer	displacement(ml)	power(kw)
ISBE185 30 ISDe160 30 ISDe180 30 ISDe185 30 B190 33 B170 33	Dongfeng Cummins Engine Co., Ltd.	5900 4500 4500 6700 5900 5900	136 118 132 136 140 125
Emission standards	GB3847-2005,GB17691-2005EuroⅢ
Axle	2	front tread	1900/1800(mm)
wheelbase	3950	rear tread	1800(mm)
tyre	6	tyre size	9.00-20,9.00R20
fuel type	diesel	spring	8/10+7
axle load	3200/7295	cab passenger	3
Note	Tank capacity:6.75m³ Tank dimension (length× long axle ×short axle)(mm):3490×2100×1380.
Special performance	High-pressure cleaning truck is modified on the chassis of secondary type, and the upper structure is tank, which is equipped with high pressure water pump. The cleaning width of spray frame is 2.5m-3.5m and can be controlled freely. It is widely used for cleaning city street and square; left and right spray is used for cleaning curb, barrier area and sidewalk.
