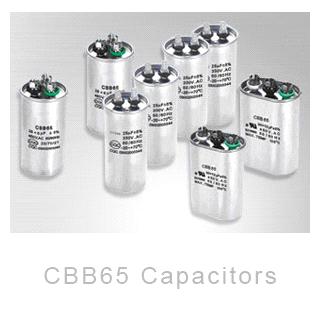

CBB65 Metallized Polypropylene Film Capacitor Anti-explosion
| FOB Price: | 0.08 - 1.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Month |
| Shipping: | 15days |
| Payment Terms: | T/T(Bank Transfer), Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Place of Origin: | Shenzhen in China |
|---|---|
| Packaging Details: | Bulk |
Specifications
| Features | Dry A.C capacitors. |
| Small cubage, low loss, low temperature rise, high insulation, good self-healing property. | |
| Coating: Aluminum case. | |
| Terminals: Tinned copper lug or insulated flexible lead wires, with copper bolt in the bottom. | |
| Applications | Widely used in ac motor start and run at 50Hz/60Hz. |
| Use well in air compressor, washing machine, air conditioner with frequency conversion, UPS etc. | |
| Specification | REFERENCE STANDARD: IEC 60252 |
| OPERATING TEMPERATURE: -40°C - +85°C | |
| CAPACITANCE RANGE: 3uF - 100uF | |
| CAPACITANCE TOLERANCE: ±5%(J), others | |
| RATED VOLTAGE: 250 - 630VAC | |
| DISSIPATION FACTOR: ≤0.2% 100Hz, 20°C | |
|
DIELECTRIC STRENGTH: Between Terminals: 200% of rated voltage for 10 sec. or 150% of rated voltage for 60 sec. Between Terminals to case: 2300VAC min. for 10 sec. |
|
|
INSULATION RESISTANCE: Between Terminals: 3,000 MOhm*uF/C min.
Between Terminals to case: 1,000 MOhm min. (20°C, 1min)
|
|
| Notes |
Customization for special specification and requirement is available. Kindly contact with info at kowarytech.com for product datasheet. Thanks! |
