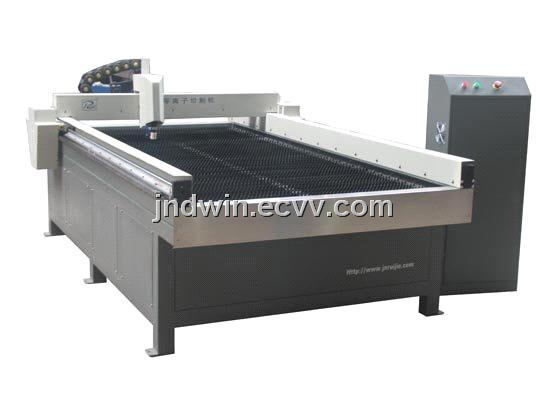

CNC Plasma Cutter (DW1325A)

FOB Price:	6,500.00 - 14,000.00 USD/Set
Supply Ability:	15 Set/Sets per Month
Shipping:	15 days after received your payment or deposit
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	plywood free of fumigation for the acutual size w can talked with the mail

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 18 months
Certification: CE,SGS
Weight: 1500KG
Dimension(L*W*H): CNC Plasma Cutter
Rated Power: CNC Plasma Cutter
Voltage: AC380V 3PH
Model Number: DW1325
Brand Name: DWIN
Condition: New

Specifications

DW1325A CNC plasma cutter is mainly for cuting the metal ,can have the following charactristcs

Features of CNC Plasma Cutter (DW1325A):
1. Unique structure: Gantry structure, double motor driver of Y axis .Light beam design, linear guide rail,
high accuracy,stable transmission.
2. Untouched plasma head, small cutting edge, no cutting residue.
3. Water cooling system avoids the distortion of metal board.
4. High cutting speed, high accuracy, low cost.
5. Advanced numeral control system, stable performance.
6. Software compatability: Ucancam, Type 3, Artcum,etc.
7. Success ratio of arc striking can be over 99%.
8. Application area: Metal sheets such as Iron sheets,Aluminum sheets,Galvanized sheets.Tianium Plates.

Specifications of CNC Plasma Cutter (DW1325A):

Model :	DW1325 cnc plasma cutter
Working area:	1300mmX2500mm
Cutting thickness:	18mm-25mm
Cutting speed:	0-8000mm/min
Power:	8.5KW
Input voltage:	3-phase 380V
Frequency of power	50Hz
Plasma Current:	40A
transmission form:	USB interface
Working form:	Untouched arc striking
Optional Power Source:	Hypertherm,Cut-Master

Guarantee & After Sales Service

1) The machine guarantee is 18 months.

2) 24 hours technical support by email or calling.

Friendly English verson manual and operation video CD disc.
