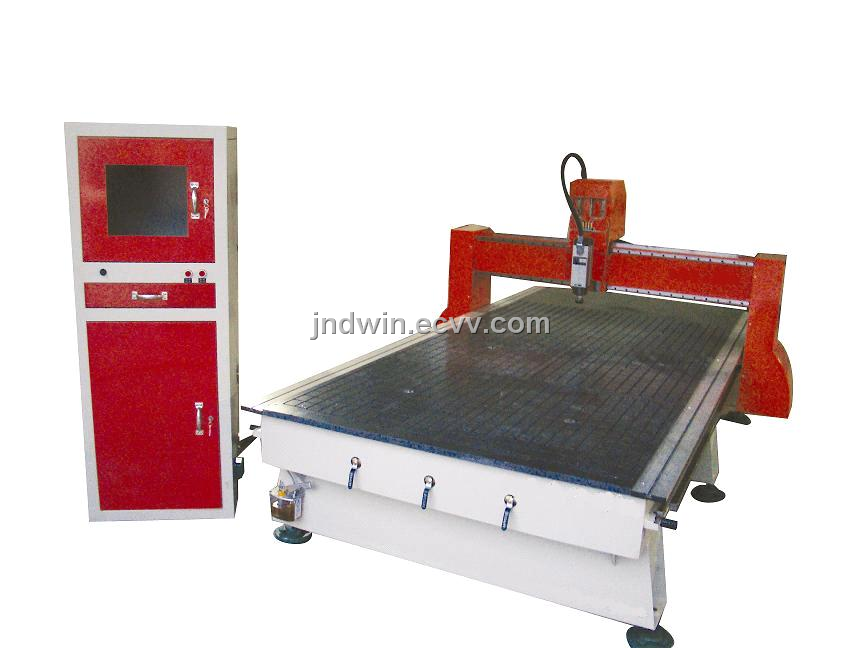

cnc Woodworking Machine (DW1325)

FOB Price:	7,000.00 - 9,900.00 USD/Set
Supply Ability:	50 Set/Sets per Month
Shipping:	15 days after recieved yourpayment and the deposit
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	plywwood box with the metal structure, free of fumugation

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 18 months
Certification: CE ISO
Weight: 1200KG
Dimension(L*W*H): cnc Woodworking Machine
Power(W): cnc Woodworking Machine
Voltage: cnc Woodworking Machine
Model Number: cnc Woodworking Machine
Brand Name: DWIN
CNC or Not: CNC
Condition: New
X, Y, Z Working Area: 1300*2500mm*200mm
X, Y, Z Traveling Positioning Accuracy: 0.05/300mm
Table Surface: Bakelite Vacuum table
Frame: Cast steel structure
X, Y Structure: Rack and Pinion Drive, Linear Bearings
Z Structure: Ball Screw, Hiwin Rail Linear Bearings

Specifications

Woodworking Machine (DW1325)

Features:

1) Woodworking: three-dimensional wave board processing, wooden door, screen, craft window processing and different kinds of furniture assistance processing

2) Advertisement stuff: the advertisement label and marking manufacturing, cutting, various kinds of materials and advertisement decoration products manufacturing

3) Mold manufacturing: our routers may carve metal molds including copper, aluminum, iron, as well as non-metal molds like marble, plastic board and wooden board

4) Other lines: our routers may carve various kinds of shade vulture, relief, craft and gift

5) High speed processing: the curving and linear speeds are consistent and the running rate amounts to above 35 meters/minutes

6) Excellent parts: our company uses imported linear rail , the rack gear and outstanding step-by-step system. We also use imported bearing and highly efficient main axle electrical machinery

7) Compatible software: our software is compatible with type 3/Artcam/Castmate and other kinds of CAD/CAM design software

8) Convenient hold controls: we uses advanced USB connection type with DSP operating system. Our routers can completely work off-line and do not take any computer resources

10) Besides, our routers have realized automatic starting and stopping of DSP operating system

11) Excellence performance: our routers have the features of recording after stop and the power failure may be restored

Technical parameters:

X, Y, Z Working Area	13002500mm200mm
Table Size	1500mm*2900mm
X, Y, Z Traveling Positioning Accuracy	± 0.05/300mm
X, Y, Z Repositioning Positioning Accuracy	± 0.05mm
Table Surface	Bakelite Vacuum table
Frame	Cast steel structure
X, Y Structure	Rack and Pinion Drive, Linear Bearings
Z Structure	Ball Screw, Hiwin Rail Linear Bearings
Max. Power Consumption (Without spindle)	2.0Kw
Max. Rapid Travel Rate	32000mm/min
Max. Working Speed	20000mm/min
Spindle Power Motor	4.5KW Spindle
Spindle Speed	0-18000RPM
Drive Motors	Stepper system(Option: Servo System)
Working Voltage	AC220V/50/60Hz, 1PH (Option: 380V 3PH)
Command Language	G Code
Operating System	DSP System (Option: Mach3 PC Software)
Interface	USB
Flash Memory	128M(U Disk)
Collet	ER25
X, Y Resolution	< 0.02mm
Software Compatability	Type3 software, Ucancam software

Guarantee & After Sales Service

1) The machine guarantee is 18 months.

2) 24 hours technical support by email or calling.

3) Friendly English verson manual and operation video CD disc.
