| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | plywood box ,free of fumigation |
Quick Details
- Application: Laser Engraving
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE,SGS,FDA
- Model Number: DW1290
- Brand Name: DWIN
- Graphic Format Supported: AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
- Applicable Material: Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood
- Cooling Mode: Water Cooling
- CNC or Not: Yes
- Engraving Speed: 0-60000mm/min
- Engraving Area: 1200mm*900mm
- Laser Type: CO2
- Condition: New

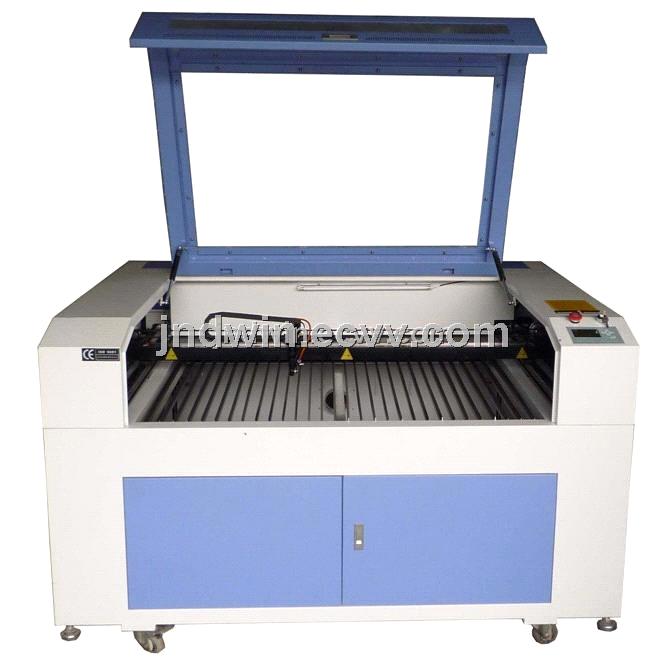

- Model: DW1290 CO2 laser Engraving machine
- Laser Tube: 60W/80W
- Controller: Leetro /Ruida
- Equipment Dimension:: 1650mm*1250mm*970mm/65in*49in*38 in (L*W*H)
- Optional parts :: Up-down worktable, Red light pointer, Auto focus, Rotary device
Specifications
DW1290 Co2 Laser Engraving Machine , have the following specification
Features:
DW290 Co2 Laser Engraving Machine . is mainly for engraving and cutting nometal materials such as arcylic , leaher , MDF. garment . The imported linear guide rail and step motor with reduce speed driver system to assure cutting incision more smooth The imported focus lens and metal reflect mirror from America have strong cutting ability and high precision
We can supply different color shapes for your need
Applicable materials:
Non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc
Applicable industry:
billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc
|
Model
|
DW1290
|
|
Working area :
|
120cm*90cm / 47in*35in (L*W)
|
|
Laser power :
|
60W/80w
|
|
Laser type :
|
CO2 sealed laser tube, water-cooled
|
|
Engraving speed :
|
0-60000mm/min
|
|
Cutting speed :
|
0-10000mm/min
|
|
Power supply :
|
220V± 10% /50HZ , 110V± 10%//60HZ
|
|
Min. shaping character :
|
Letter 1.0 x 1.0mm
|
|
Graphic format supported:
|
BMP, PLT, DST, DXF, AI, CDR
|
|
Software supported :
|
CorelDraw, PhotoShop, AutoCAD
|
|
Laser Output Control:
|
1-100% software setting
|
|
Highest Scanning Precision:
|
2500DPI
|
|
Resolution ratio :
|
< 0.01mm
|
|
Location precision:
|
< 0.01mm
|
|
Working temperature:
|
540
|
|
Operating humidity:
|
5%-95%(without condensed water)
|
|
Equipment Dimension:
|
1650mm*1250mm*970mm/65in*49in*38 in (L*W*H)
|
|
Net Weight
|
350KG
|
|
Optional parts :
|
Up-down worktable, Red light pointer, Auto focus, Rotary device
|
|
|
|
Accessories: Nessary Attachment like: water cooling , exhaust fans , air compressor. Software, English friendly user manual , data cable and other free parts
Applicable materials: Non-metal materials , such as double color board, plexiglass, glass, bamboo , and wood , rubber . marble , granite , tiles , leathers, etc
optional Accessories with machine
- Rotary device
- Auto up and down table
- auto focus
