Specifications

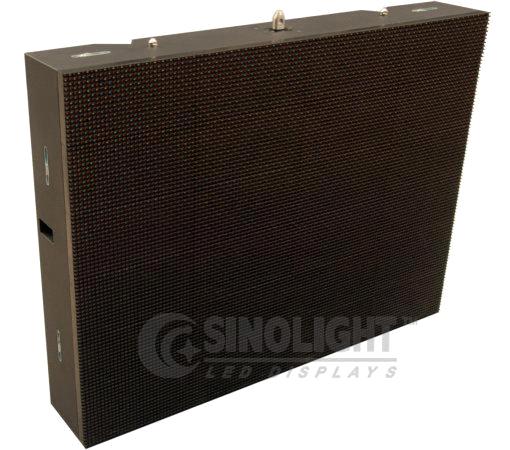

Product name: p25 led panel 40*40 for led displays screens Item no:LDS-P25-OD

Keywords:p25 led panel 40x40 for displays screens

p25 led panel 40*40 for led displays screens is specially designed to satisfy the requirement for outdoor displays especially Billboard and where installation fields are limited and water-closed. It is the ideal solution designed for marketers who are keen to optimize their investment for long time as product is really high performance cost

Specifications
Parameters	Description	Unit
Model NO	LDS-P25-OD
Brightness	6000	nits
Colour Temperature	5000-9000	deg.k
Viewing Angle - Horizontal(50% brightness)	110(+55/-55)	deg.
Viewing Angle - Vertical(50% brightness)	50(+25/-25)	deg.
LED Panel Weight	60	kg
LED Panel Size	10001000170	mm
LED Panel Area	1	sq.m.
LED Panel Materials	Epoxy paint coated Aluminum/Steel
Ingress Protection(front/rear)	65/54	IP
Operating Temperature Range	-20 to +55	deg.C
Pixel Type and Configuration	Oval Lamp,1R/1G/1B	R/G/B
Pixel Pitch	25	mm
Pixel Matrix per panel	40*40
Pixel Per Panel	1600
Pixel Per sq. meter	1600
Recommended Minimum Viewing Distance	25	m
Colours	4.4 Trillion
Grey Scale(linear)	16384	levels
Brightness Control	100 steps	levels
Processing Depth	10	bit
Video Frame Rate	60-85	Hz
Display Refresh Rate	240-1000	Hz
Drive Mode	Dynamic 1/4 Duty Constant Current
Input Voltage(nominal)	110V / 220V / 90-260V	V
Input Power Frequency	50 AND 60	Hz
Input Power(max)	500	Watts/sq.m
Input Power(ave)	130	Watts/sq.m
Lifetime(50% brightness)	>100000	Hours
Red Wavelength(dominant)	620-630	nm
Green Wavelength(dominant)	515-530	nm
Blue Wavelength(dominant)	465-475	nm
Data Interconnection	Lan Line
Application	Outdoor, Rental/fixed installation
