Specifications

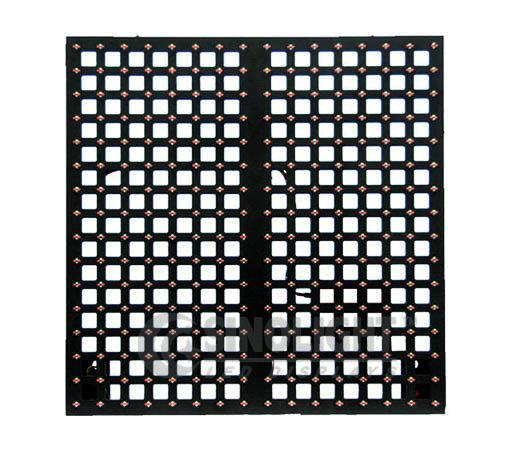

Product name: P40 LED Curtain Wall displays Item no:LDS-P40-CW

Keywords:P40 LED Curtain Wall displays

The P40 Curtain wall led displays screens consist of a series of hanging circuitstrips of LEDs that are designed for dance halls,stage lights and concert halls that allow changing of patterns in time with the music. It works with professional stage lighting system and can be perfectly combined with sound,light and colour for a spectacular event. Competitively priced and produced with lightweight aluminum material,sinolight curtain wall display adopts a perfect design that allows for fast and easy setup thus cutting down on transportation and installation costs. Curtain wall display is recommended for both indoor and outdoor use in concert, entertainment venue and stage backgroud.

Parameter	Unit	Value
Brightness	nits	1800
Colour temperature	deg. K	5,000-9,000
Viewing angle - Horizontal& Vertical (50% brightness)	deg.	140 degrees smd
Panel weight	kg	10
Panel width & height	mm	640
Panel depth	mm	80
Panel area	sq. m.	0.4096
Panel material		aluminum
Ingress protection (front/rear)	IP	IP65
Operating temperature range	deg. C	-20 to +50
Pixel type and configuration	R/G/B	SMD and discreet
Pixel pitch	mm	40
Pixel matrix per panel		16X16
Pixels per panel		256
Pixels per sq. meter		625
Recommended minimum viewing distance	m	40
Colours		66.7 billion
Grey scale (linear)	Levels	4096~16384
Brightness control	Levels	100 steps
Processing depth	bit	14 bit
Video frame rate	Hertz	50~60hz.pal,cat 5e 1 gb
Display refresh rate	Hertz	1,200
Drive mode		static
Input voltage (nominal)	VAC	AC110V or 220V
Input power frequency	Hertz	50 -60
Input power (max)	Watts /sq. m.	180
Input power (Ave.)	Watts /sq. m.	70
Lifetime (50% brightness)	Hours	50000
Red wavelength (dominant)	nm	624
Green wavelength (dominant)	nm	520
Blue wavelength (dominant)	nm	470
Data interconnection		Integrated power and data plug
