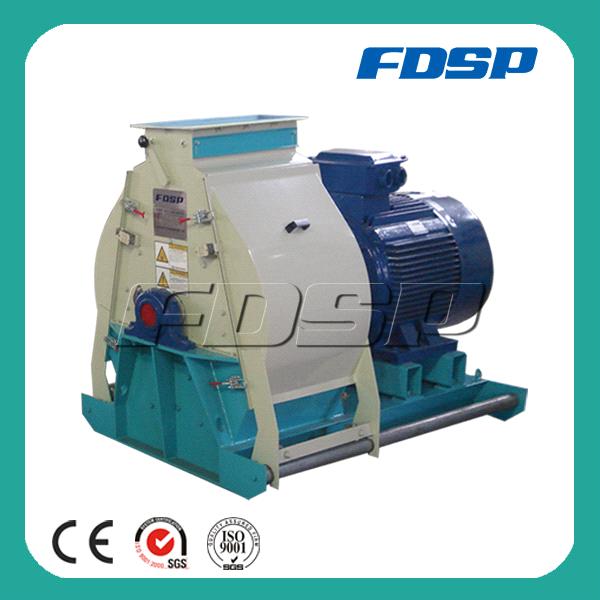

Wide Fine Grinding Hammer Crusher

FOB Price:	500.00 - 1,000.00 USD/Set
Supply Ability:	100 Set/Sets per Year
Shipping:	20-30DAYS
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Place of Origin:	Jiangsu in China
Packaging Details:	WOODEN CASE/PALLET/IRON CASE

Specifications

Tear circle SFSP668 Series Wide Fine grinding hammer crusher

Features:

1. It is used for grinding raw materials by large and medium livestock and aqua feed mills. It can also be used for grass and pharmacy fine grinding. The granular raw materials, such as corn, sorghum, wheat, beans, etc can be grinded;
2. It is derived from tear circle type hammer mill and efficiency can be improved by 45%-90% comparing to universal hammer mill;
3. It can produce qualified aqua feed under full load with ￠0.8, ￠1 screen and reduce jam significantly. Both coarse and fine grinding can be realized without changing screens;
4. The right aspiration can make materials go through screen quickly, reduce temperature of grinding chamber and increase output effectively.

Main Technical Parameters:

Parameters Model	Dia. Of Rotor	Width of Grinding Chamber (mm)	Speed Of Rotor (r/min)	Speed Of Beater (m/s)	No. Of Beater (pc)	Power (kw)	Aspiration (m³/min)		Output(t/h)
Parameters Model	Dia. Of Rotor	Width of Grinding Chamber (mm)	Speed Of Rotor (r/min)	Speed Of Beater (m/s)	No. Of Beater (pc)	Power (kw)	Coarse	Fine	Output(t/h)
SFSP668-Ⅰ	660	380	2970	94	56	22/30	30	34	5-6
SFSP668-Ⅱ	660	450	2970	94	64	45/55	40	45	7-12
SFSP668-Ⅲ	660	600	2970	94	88	55/75	48	53	10-15
SFSP668-Ⅳ	660	750	2970	94	112	90/110	60	66	15-20

Re: The above indices are those when meeting the following conditions: raw material: corn, moisture content not higher than 14%, density not lower than 0.72t/m³, screen: hole diameter ￠3mm, hole-opening rate not less than 33%.
