Kowary Technology Co., Ltd.
China Manufacturer with main products: Capacitors, Power Electronic Capacitor |

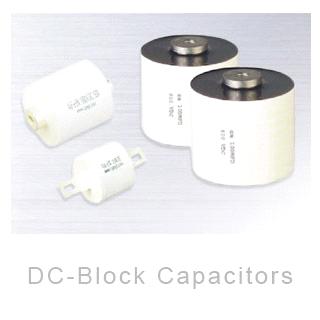

DC-Block capacitors series
| Supply Ability: | 100,000 Piece/Pieces per Month |
|---|---|
| Shipping: | 15days |
| Payment Terms: | T/T(Bank Transfer), Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Place of Origin: | Shenzhen in China |
|---|---|
| Packaging Details: | Bulk |
Specifications
| Features |
Metallized film, UL94V-0 resin end filled, dry construction, non-inductive type.
|
|
High-frequency, high voltage, high current, long useful life.
|
|
|
Withstand heavy current.
|
|
|
High contact reliability and good self-healing.
|
|
|
Low equivalent series resistance (ESR), low equivalent series inductance (ESL).
|
|
|
Coating: polyester tape wrapping (Axial).
|
|
|
Terminals: Tinned copper lugs or copper bolt nuts.
|
|
| Applications |
Widely used in induction heating, electroplating power supply, inverter welder, inverter power supply and other electronic equipment for high current’s DC-blocking and resonant circuits.
|
| Electrical Characteristics |
REFERENCE STANDARD: IEC 61071
OPERATING TEMPERATURE: -40℃ - +85℃
CAPACITANCE RANGE: 0.5uF - 12uF
CAPACITANCE TOLERANCE: ±5%(J), ±10%(K)
VOLTAGE RANGE: 400VAC - 700VAC
DISSIPATION FACTOR: 0.1% max. at 1KHz, 25℃
DIELECTRIC STRENGTH: Between Terminals: 150% of rated voltage for 10 sec. at 25℃
Between Terminals to case: 3,000V 50Hz for 2 sec.
INSULATION RESISTANCE: 5,000MOhm*uF/C min (25℃, 1min)
SHOCK CURRENT CAPABILITY: du/dt: 410 - 1190V/μs
EFFECTIVE CURRENT: 96A max.
|
| Notes |
Customization for special specification and requirement is available. Kindly contact with info at kowarytech.com for product datasheet. Thanks! |
