HZ-BMM series batteries online maintenance management system
| Payment Terms: | L/C, T/T(Bank Transfer), D/A, D/P, Western Union, PayPal |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Place of Origin: | Beijing in China |
|---|
Specifications
batteries online maintenance management system, mainly applicable to the following types of power systems: all kinds of 48V power systems; types of 24V power systems; various UPS power supply system; power 220V power system.
battery maintenance management system in addition to online monitoring function with battery, but also adds real-time online storage battery maintenance function to solve the main problem of decreasing the battery capacity to shorten the battery life because of the differences between individual cells.At the same time, it’s also endowed with the maintenance and management functions that can judge the performance of the battery ,predict the battery capacity and, etc., in order to be more intuitive and more effective for the battery maintenance management.
Main Features
● On-line monitor the voltage and temperature of each single cell and the total voltage and the charge and discharge current of the batteries.
● Automatically do the on-line maintenance of single cells beyond the scope of set voltage.Remove the effect of the battery self-discharge to guarantee long-term stability of the battery capacity;
● 20 × 240 color LCD display, real-time single cell voltage and histogram display
● Can save the historical data more than 1 year to facilitate the data analysis of networking base station that can not be carried out
● Auto-save battery charge and discharge curves, easy on the battery capacity and lifetime prediction and analysis;
● maintain the same group of up to 128 single cells at the same time Per host
● Communication protocol to meet the YD_T1363-2005 standard to facilitate centralized monitoring connections with other systems
● Provides various network model such as RS232/485, TCP / IP, GSM / GPRS / CDMA and etc.
● Give an alarm to all surpassed monitor signal.User can set various parameters of the alarm threshold

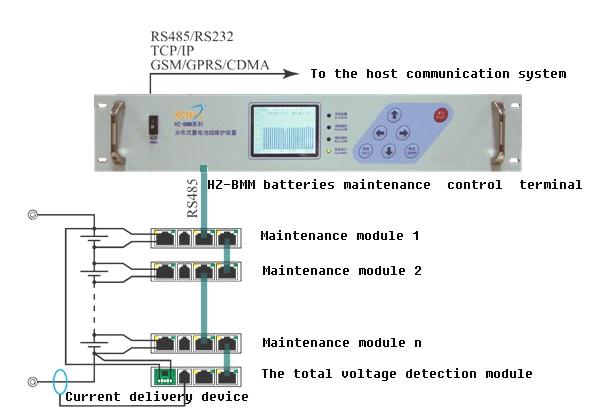

● Modular distributed architecture designed to reduce security risk and improve construction speed, cost savings
Technical conditions
● Supply Voltage: 36Vdc ~ 72Vdc, 176Vac ~ 264Vac optional
● Operating temperature: -20 ℃ ~ 70 ℃
● Relative humidity: ≤ 90% (40 ℃ ± 2 ℃)
● Atmospheric pressure: 86 kpa ~ 106 kpa
Technical Indicators
● Battery total voltage detection accuracy: ± 0.2%
● Single cell voltage measurement accuracy
12V single battery: ± 20mV (9V ~ 15V)
06V single battery: ± 10mV (4.5V ~ 7.5V)
02V single battery: ± 5mV (1.5V ~ 2.5V)
● Battery current detection accuracy: ± 5%;
● Battery temperature detection accuracy: ± 2 ℃ (0 ℃ ~ 70 ℃)
● Isolation voltage between modules: 2500Vdc
Dimensions
● Host: 19-inch 2U standard chassis;
● Module: 84mmx47mmx23mm (length x width x high).
