Product Details

Place of Origin:	Zhejiang in China
Packaging Details:	PLYWood Case

Specifications

Standard or Nonstandard of Full Bore Trunnion Ball Valve	Standard
Structure	Ball
Pressure	Medium Pressure
Power	Manual
Valve Material	Forged
Temperature of Media	High Temperature
Media	oil ,water ,etc
Place of Origin	zhejiang, China (Mainland)
Model Number	Q47F
Brand Name	ZM
Operation	Worm Gear/Electric/Pneumatic
Certification	API 6D, CE, ISO9001:2000

Detailed Product Description

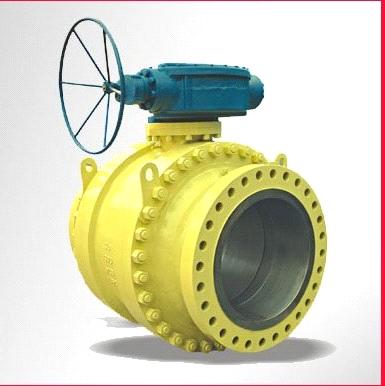

Full Bore Trunnion Ball valve
Size: 2" --56"
Class 150--2500LB
Material: ASTM A105 , A216WCB,A351CF8,A351CF8M,A182 F316,A182

Full Bore Trunnion Ball Valve

Applicable Standards

Ball valve : API 6D
Fire safe : API 607
Anti static : API 608
Face to face: ASME B 16.10
End flanges : ASME B 16.5 & MSS SP-82
Butt welding ends : ASME B 16.25
Inspection and test : API 598 / API 6D

Design Description :

Full port design & Reduced bore & Long patten
BB, Bolted bonnet, split body
Three piece body for 12" or above
Trunnion mounted ball type
Blow-out proof stem
Fire safe construction
Anti static device
Stopper device
ISO 5211 Mouting pad
RF & RTJ & RTG Flanged or Butt welding ends

Specification :

Size :2 -56inch.
Pressure: Class1 50-2500LB...
Material:WCB,LCB,CF8,CF8M,CF3,CF3M, A105,LF2,F304,F316,F304L,F316L
Structure Type: One-piece, Two-piece, Three-Piece,Reduced bore, Full bore
Floating type(1/2 -10 inch ), trunnion type(2 -40 inch),
Operated way: Lever, Gear, Pneumatic, Electric
