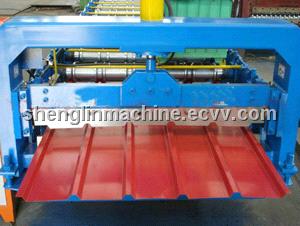

Metal Sheet Forming Machine

FOB Price:	13,000.00 - 15,000.00 USD/Set
Supply Ability:	1,000 Set/Sets per Year
Shipping:	45 working days after we receipt your deposit
Payment Terms:	L/C, T/T(Bank Transfer)

In Stock

Inquiry Now

Place of Origin:	Hebei in China
Packaging Details:	Nude of machine.only electric parts put into a wooden box.

Specifications

Main machine

1. Dimension of machine:7m(L)*1.2mw*1.2m(h)

2. Total weight of machine:about 4.5Tons

3. Main motor power:380V,50HZ,5.5KW

4. Reducer:6#Planetary reducer.speed ratio:1:59

5. Frame of machine:250mm “H”steel welding

6. Thickness of Mid-plate:14mm

7. Chains:1.2 inch

8. Shafting:45# steel forging,CNC lathe finish machining,polishing,plating hard chrome on surface.

9. Axis:13 rows

10. Suitable coil thickness:0.3-0.8mm

11. Cutting method:automatic hydraulic cutting

12. Material of cutter:Cr12,through coarse grinding,heat treatment,accurate grinding,wire-electrode cutting then formed.

13. Hydraulic cutting adopt double-cylinder drive,diameter of cylinder is 100mm,route:150mm

14. Hydraulic pump station:4kw ,380v 50hz

15. Electric equipment:adopt Mitsubishi PLC,7.5kw Converter.and other Chint ,Delixi control elemnets
