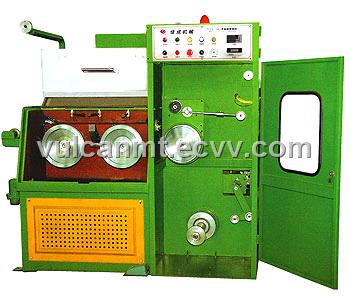

CCA/Al-Mg Alloy Wire Drawing Machine

Inquiry Now Start Order

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China

Specifications

Name	CCA/Al-Mg Alloy Wire Drawing Machine
Control system	Traditional analog type/By computer digital control
Inverter control	Dual Inverter control
Drawing dies No. /Max.	14
Intlet diameter	φ 0.80～φ 2.05mm
Outlet diameter	φ 0.30～φ 0.65mm
Drawing line speed	1200m/min
Slip ratio of m/c	15%
Fix speed capstan slip ratio	8%
Frame	Welded by steel plate
Capstan	Tungsten plasma capstan
Main motor	15KW
Spooler motor	5.5KW
Capstandia. (Max. )	φ 316mm
Fix speed capstan dia.	φ 268mm
Spool bobbin size	φ 300or according to customers requirements
Send-out method	Shaft type
Traversing unit	synchronous motor +Belt
Transmission type	By flat belts
Spooler control	PID synchronous spooler
Detecting device	Air balance by swing arm
Tension control	Air pressure type
Max. Loading capacity	20KG
Lubrication type	Spray type
Brake	Magnetic brake
Power source	380V 50/60HZ
Lubricant oil capacity	40Liter/minute
Machine dimension (mm)	2050× 1600× 1900
Machine weight	2200KG
