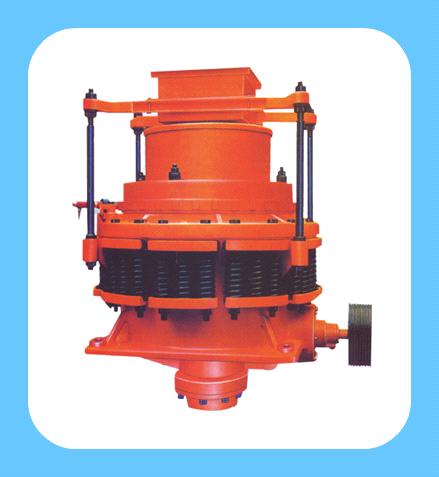

professional cone crusher

FOB Price:	1,000.00 - 80,000.00 USD/Set
Supply Ability:	50 Set/Sets per Month
Shipping:	15-20days after receiving down payment.
Payment Terms:	L/C, T/T(Bank Transfer)

In Stock

Inquiry Now

Related products from verified members

Compound Cone Crusher

Price:

Min. Order:1 Set
high capacity impact crusher

Price:3,200.00-96,500.00 USD/Set

Min. Order:1 Set
coal and slag crushing machine of roll crusher

Price:4,000.00-100,000.00 USD/Unit

Min. Order:1 Unit

Product Details

Place of Origin:	Henan in China
Packaging Details:	standard export containers nude packing,small parts in wooden cases.

Specifications

I. Professional Cone Crusher Usage and Application
Spring cone crusher is widely used for secondary and fine crushing in the fields of mining, chemical industry, building materials, metallurgy and so on. It can crush materials with Moh's scale in middle and high hardness such as ironstone, copper ore, limestone, quartz, granite, rock and so on. The standard type (PYB) is applied to secondary crushing; the medium type (PYZ) and the short-head (PYD) are applied to fine crushing.

II. Professional Cone Crusher Working Principle
When spring cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle close to the bowl liner and far away from the bowl liner from time to time. The raw materials are pressed, impacted and finally crushed in the crushing cavity.

III. Professional Cone Crusher Features
1. High capacity and good quality;
2. Long life for quick-wear parts, and low investment cost;
3. Dilute petrol stations for continuous lubrication to reduce downtime maintenance time.

Model	Max. Feeding Sizes (mm)	Adjustable Range of Output size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)	Overall Dimension (mm)
PYB600	65	12-25	10-25	30	5	2234×1370×1675
PYD600	35	3-13	5-20	30	5.5	2234×1370×1675
PYB900	115	15-50	50-90	55	11.2	2692×1640×2350
PYZ900	60	5-20	20-65	55	11.2	2692×1640×2350
PYD900	45	3-13	15-50	55	11.3	2692×1640×2350
PYB1200	145	20-50	110-168	110	24.7	2790×1878×2844
PYZ1200	100	8-25	42-135	110	25	2790×1878×2844
PYD1200	50	3-15	18-105	110	25.6	2790×1878×2844
PYB1750	215	25-60	280-480	160	50.3	3910×2894×3809
PYZ1750	185	10-30	115-320	160	50.3	3910×2894×3809
PYD1750	85	5-15	75-230	160	50.4	3910×2894×3809
PYB2200	300	30-60	490-800	260/280	80	4622×3302×4470
PYZ2200	230	10-30	200-580	260/280	80	4622×3302×4470
PYD2200	100	5-15	120-340	260/280	81.4	4622×3302×4470
