Jinmuyu Electronics Co., Ltd.
China Manufacturer with main products: Contactless IC Card Readers, Proximity Card Reader, OEM Rfid Modules, And Series of IC Card Developing Board, Mifare Card 1k &4k, Mifare... |

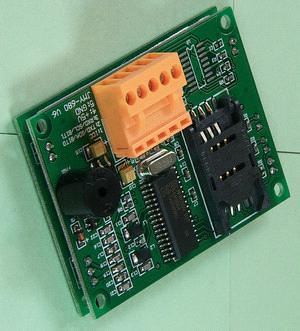

HF RFID Reader Module (JMY680C)
| FOB Price: | 23.00 - 27.27 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Month |
| Shipping: | 5 working days |
| Payment Terms: | T/T |
Related products from verified members
| Place of Origin: | Beijing in China |
|---|---|
| Packaging Details: | 5 pcs per box Box size: 16*15*5cm |
Specifications
HF RFID Reader Module
Model NO.: JMY680C
PCD model: NXP MF RC531
Antenna: built in(a layer of ferrit plate betweem the antenna and module make it excellent)
Antenna: built in(a layer of ferrit plate betweem the antenna and module make it excellent)
Working frequency: 13.56MHz
Card supported: Mifare 1K/4K, FM11RF08, Ultra Light, DesFire, Mifare ProX, SR176, SRI512, SRI1K, SRI2K, SRI4K, SRIX4K, T=CL smart cards(both ISO14443A & ISO14443B) and ISO7816 SAM cards (both T=0 & T=1)
Anti collision ability: Full functions anti collision; be able to process multi-cards; be able to set operate single card only
Auto detecting card: Supported, default OFF
SAM slot: 1 slot
SAM baud rate: 9600bps/38400bps
ISO7816 PPSS set: supported
EEPROM: 512 Bytes
Power supply: DC 5V (±0.5V)
Interface: IIC/UART/RS232C (select when place order)
Communication rate: IC-400Kbps; UART-19.2Kbps/115.2Kbps
Max. command length: 254 Bytes
Interface level: UART/IIC: 3.3V (TTL level; 5V tolerance)
Power consumption: 80mA
Reading range: 80mm (depending on card)
Dimension: 70mm*50mm*16.5mm
Weight: About 120g
ISP: Yes
Operating temperature: -25 to +85 °C
Storage temperature: -40 to +125 °C
RoHS: Compliant
