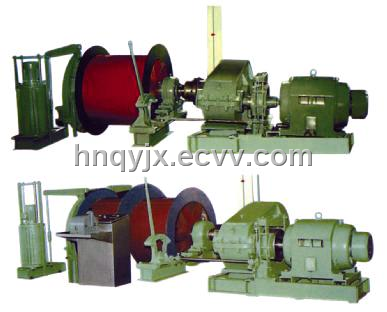

JTK Series Hoisting Winch

Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Henan in China
Packaging Details:	Small one packed in boxes, large with nude packing,meeting the demands of export and seaway.

Specifications

This series hoisting winch is mainly used on the ground in coal mine, metal mine and nonmetal mine, for hoisting and lowering materials and staff. This series winch using wire-wound type motor, it' s a non-explosion-proof type winch. Don' t use it underground, in explosive gases or coal dust.

No.				1	2	3	4	5	6
Type				JTK-1.0× 0.8	JTK-1.2× 1.0	JTK-1.6× 1.2	2JTK-1.0× 0.6	2JTK-1.2× 0.8	2JTK-1.6× 0.9
Reel	Quantity			1			2
	Diameter		mm	1000	1200	1600	1000	1200	1600
	Width		mm	800	1000	1200	600	800	900
Max wire rope static tension	Manned		KN	Manned prohibited	18	38	Manned prohibited	18	38
Max wire rope static tension	Loading			19	26	46	19	26	45
Max wire rope static tension difference	Manned			Manned prohibited	18	38	Manned prohibited	18	30
Max wire rope static tension difference	Loading			19	26	45	15	20	30
Max wire rope Diameter			mm	12	14	20	12	14	20
Aggregate of min wire breaking force			KN	125	170	647	125	170	347
Hoisting height/ Transport length	First layer entwining	Not more than	m	156	213	179	133	110	62
	Second layer entwining			322	432	379	276	230	339
	Third layer entwining			503	669	602	432	366	537
Max Hoisting speed			M/s	1.8	2.0	4.0	1.8	2.5	4.0
Motor Power (kw)				45	55	110	45	55	110
