Shijiazhuang Gabion Trading Co., Ltd.
China Manufacturer with main products: Temporary Fence, Crowd Control Barriers, Wire Mesh Fence, Gabions, Welded Wire Mesh |

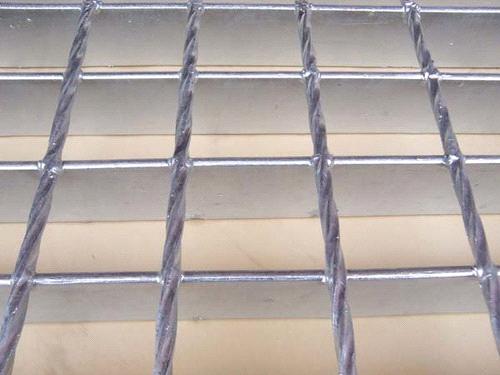

Steel Grid
| FOB Price: | 10.00 - 20.00 USD/Square Meter |
|---|---|
| Supply Ability: | 1,000 Square Meter per Day |
| Shipping: | within ten days |
| Payment Terms: | L/C, T/T(Bank Transfer), Western Union, L/C at sight |
| Place of Origin: | Hebei in China |
|---|---|
| Packaging Details: | pallet |
Specifications
Steel Grid
1.Bearing bar pitch: 30, 40, 60mm
2.Cross bar pitch: 50,100mm
3.Grating type:plain, serrated, I-shape
1.Bearing bar pitch: 30, 40, 60mm
2.Cross bar pitch: 50,100mm
3.Grating type:plain, serrated, I-shape
Serrated Steel Grating
Surface Process of Gratings
1. Normally ,Hot galvanizing will be carried out after end welding process, When the thickness of bearing bars is not less than 5mm,the weight of average Zinc Layer will not be less than 610g/m2 .When the thickness of bearing bars is less then 5mm,the weight of average Zinc Layer will not be less than 460g/m2 . The quality and requirements after hot galvanizing are subject to the standards of GB/T 13912.
2. To gain protection layer through the ways of spraying, brushing and soaking.
2. To gain protection layer through the ways of spraying, brushing and soaking.
Steel Gratings Most—Popular Specifications
1. The grating that the pitch between bearing bars is 30mm, is most widely used type in industrial field. Among normal type, it has the strongest resistance to surface lash.
2. The grating that the pitch between bearing bars is 40mm is the most economical and lightest type. It is the best choice for you on occasions that the clear span is small.
3. The grating that the pitch between bearing bars is 60mm and the pitch between cross bars is 50mm is developed specially for mining industry, it solves the problem of mineral splash on the plate .So it is often appointed to use in processing works, of mining industry.
4. The grating with the pitch of 30mm between bearing bars and of 76mm between cross bars is the most popular type used home and abroad, it is proper for many applications such as walkways, platforms, etc.
2. The grating that the pitch between bearing bars is 40mm is the most economical and lightest type. It is the best choice for you on occasions that the clear span is small.
3. The grating that the pitch between bearing bars is 60mm and the pitch between cross bars is 50mm is developed specially for mining industry, it solves the problem of mineral splash on the plate .So it is often appointed to use in processing works, of mining industry.
4. The grating with the pitch of 30mm between bearing bars and of 76mm between cross bars is the most popular type used home and abroad, it is proper for many applications such as walkways, platforms, etc.
Steel grating specifications
|
Series
|
Pitch of Bearing bar
|
Cross-bar Pitch
|
Specification of bearing bar load(width × thickness)
|
|||||
|
20×3
|
25×3
|
32×3
|
40×3
|
20×5
|
25×5
|
|||
|
1
|
30
|
100
|
G203/30/100
|
G253/30/100
|
G323/30/100
|
G403/30/100
|
G205/30/100
|
G255/30/100
|
|
50
|
G203/30/50
|
G253/30/50
|
G323/30/50
|
G403/30/50
|
G205/30/50
|
G255/30/50
|
||
|
2
|
40
|
100
|
G203/40/100
|
G253/40/100
|
G323/40/100
|
G403/40/100
|
G205/40/100
|
G255/40/100
|
|
50
|
G203/40/50
|
G253/40/50
|
G323/40/50
|
G403/40/50
|
G205/40/50
|
G255/40/50
|
||
|
3
|
60
|
50
|
|
G253/60/50
|
G253/60/50
|
G403/60/50
|
G205/60/50
|
G255/60/50
|
|
Series
|
Pitch of Bearing bar
|
Cross-bar Pitch
|
Specification of bearing bar load(width×thickness)
|
|||||
|
32×5
|
40×5
|
45×5
|
50×5
|
55×5
|
60×5
|
|||
|
1
|
30
|
100
|
G325/30/100
|
G405/30/100
|
G455/30/100
|
G505/30/100
|
G555/30/100
|
G605/30/100
|
|
50
|
G325/30/50
|
G405/30/50
|
G455/30/50
|
G505/30/50
|
G555/30/50
|
G605/30/50
|
||
|
2
|
40
|
100
|
G325/40/100
|
G405/40/100
|
G455/40/100
|
G505/40/100
|
G555/40/100
|
G605/40/100
|
|
50
|
G325/40/50
|
G405/40/50
|
G455/40/50
|
G505/40/50
|
G555/40/50
|
G605/40/50
|
||
|
3
|
60
|
50
|
G325/60/50
|
G405/60/50
|
G455/60/50
|
G505/60/50
|
G555/60/50
|
G605/60/50
|
Steel Grating Standards
Our steel grating products are produced to meet the standards:
|
Steel Grating Standard
|
Steel Material Standard
|
Hot Dip Zinc Coating Standard
|
|
China Standard:
YB/T4001—1998 |
China Standard:
GB700—88 |
China Standard:
GB/T13912-92 |
|
USA Standard:
ANSI/NAAMM(MBG531—88) |
USA Standard:
ASTM(A36) |
USA Standard: ASTM(A1 23)
|
|
UK Standard: BS4592—1987
|
UK Standard: BS4360(43A)
|
UK Standard: BS729
|
|
Australia Standard: ASl 657—1 992
|
Australia Standard: AS3679
|
Australia Standard: ASl650
|
