BAOHUA HEAVY INDUSTRY CORP., LIMITED
China Manufacturer with main products: Excavator, Road Roller, Crane, Loader, Crusher, Mining Machine, Rotary Drilling Rig, Bulldozer |
Related products from verified members
| Place of Origin: | Beijing in China |
|---|
Specifications
Performance Characteristics

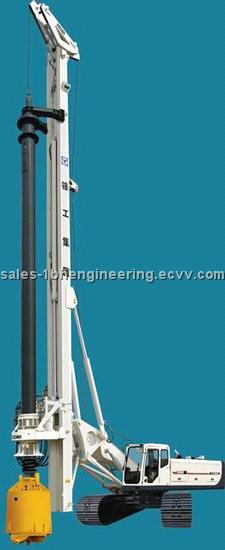

1.The special hydraulic chassis for the rotating drill with extensible crawler is provided with the excellent stability and is convenient to transport. The imported Cummins turbo-supercharged engine (meeting EU-3 standard) is powerful, and has sufficient power reserve, which can be operated in plateau. Its noise and emission meet the national standards. The constant' power and the best output enable the complete machine to function at its best.
2.The main and auxiliary hydraulic systems are all adopt the technique of load sensor, which can increase the efficiency of hydraulic system and save energy. It uses heavy load hydraulic units to satisfy the all kinds operating status of drill.
3.The patented parallelogram hinge mechanism enlarges the work area.
4.Independent intellectual property rights of the intelligent control system, the application of CAN bus and the PLC control system, including the automatic and manual adjustment of the perpendicularity of the drill mast, the automatic display of the drilling depth, rotary automatic positioning control and the intellectual fault diagnosis control.
5.Three speed reducers are used in the power head. It can output high torque. The drill mast, which is made of the materials with high strength, is designed to box structure. The higher rigidity and anti-distortion can ensure the drilling accuracy effectively. The hinge provided with the bearing exempt from lubrication can turn neatly. The slag can be discharged at any point of 360°rotation.
Main Technical Specification
|
model
|
|
|
XR360
|
|
Engine
|
Model
|
|
CUMMINS QSM11-C400
|
|
Rated Power
|
KW/rpm
|
298
|
|
|
Rotary Dvive
|
Max. output torque
|
kN·m
|
360
|
|
Rotary speed
|
r/min
|
6-25
|
|
|
Max. Drilling Diameter
|
With casing
|
mm
|
2000
|
|
Without casing
|
mm
|
2500
|
|
|
Without 1st mast
|
mm
|
3000
|
|
|
Max. Drilling Depth
|
m
|
96,81, 65
|
|
|
Pull-Down Cylinder
|
Max. pull-down piston push
|
KN
|
240
|
|
Max. pull-down piston pull
|
KN
|
220
|
|
|
Max. pull-down piston stroke
|
m
|
6.0
|
|
|
Main Winch
|
Max. pulling force
|
KN
|
320
|
|
Max. pulling speed
|
m/min
|
72
|
|
|
Auxiliary Winch
|
Max. pulling force
|
KN
|
100
|
|
Max. pulling speed
|
m/min
|
be equal or greater than 65
|
|
|
Mast Rake
|
Side/forwards/backwards
|
|
4/5/15°
|
|
Undercarrige
|
Max. traveling speed
|
KM/h
|
1.5
|
|
Max. grade ability
|
%
|
40
|
|
|
Min. Clearance
|
mm
|
425
|
|
|
Track shoe width
|
mm
|
800
|
|
|
Distance between tracks
|
mm
|
3500-4800
|
|
|
Hydraulic Systerm
|
Working pressue
|
Mpa
|
33
|
|
Overall Drilling Weight
|
t
|
90
|
|
|
Dimension
|
Working condition
|
mm
|
11000*4800*24586
|
|
Transportation condition
|
mm
|
18810*3500*3500
|
|
