Zhengzhou ZMS Cable Co., Ltd.
China Manufacturer with main products: Insulated Power Cable, Control Cable, Overhead Cable, Flat Wire |

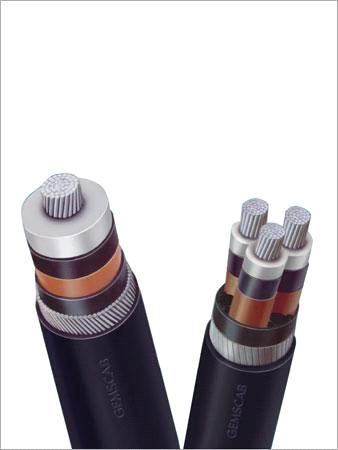

Aluminum Conductor XLPE Insulated Copper Tape Screened Sta Power Cable
| Supply Ability: | 85 Kilometer per Week |
|---|---|
| Shipping: | 15-20DAYS |
| Payment Terms: | L/C |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | South America, Southeast Asia, Africa, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | ACCORDING TO CUSTOMERS' REQUIREMENTS |
Specifications
-
Application:
XLPE insulation, steel tape armor, PVC sheath power cable is used to be laid underground, the cable could bear certain mechanical force, but it couldn’t bear great pulling force.
Standards: IEC502, IEC332-3
Conductor: Al
Insulation: XLPE( Cross-Linked Polyethylene )
Armored: Steel tape
Sheath: PVC( Premature Ventricular Contraction )
Sheath Color: Black or Gray( Bespoke cable )
Bending Radius:
Single core: 20D ± 0.05 , multi-core: 15D ± 0.05
Temperature Rating: 0℃ to 90℃
|
6.6/6kV 1 cores Al/XLPE/STA/PVC Cable
|
||
|
Nominal cross sectional area of conductor(mm2)
|
Steel tape thickness(mm)
|
Approx, overall diameter(mm)
|
|
1×35
|
0.5
|
26.2
|
|
1×70
|
0.5
|
29.3
|
|
1×120
|
0.5
|
32.5
|
|
1×185
|
0.5
|
35.9
|
|
1×300
|
0.5
|
40.7
|
|
1×400
|
0.5
|
44.2
|
Application:
XLPE insulation, steel tape armor, PVC sheath power cable is used to be laid underground, the cable could bear certain mechanical force, but it couldn’t bear great pulling force.
Standards: IEC502 , IEC332-3
Conductor: Al
Insulation: XLPE( Cross-Linked Polyethylene )
Armored: Steel tape
Sheath: PVC( Premature Ventricular Contraction )
Sheath Color: Black or Gray( Bespoke cable )
Bending Radius:
Single core: 20D ± 0.05 , multi-core: 15D ± 0.05
Temperature Rating: 0℃ to 90℃
|
6.6/6kV 3 cores Al/XLPE/STA/PVC Cable
|
||
|
Nominal cross sectional area of conductor(mm2)
|
Steel tape thickness(mm)
|
Approx, overall diameter(mm)
|
|
3×35
|
0.5
|
50.70
|
|
3×70
|
0.5
|
57.55
|
|
3×120
|
0.5
|
64.41
|
|
3×185
|
0.5
|
71.91
|
|
3×300
|
0.5
|
83.6
|
|
3×400
|
0.5
|
90.4
|
