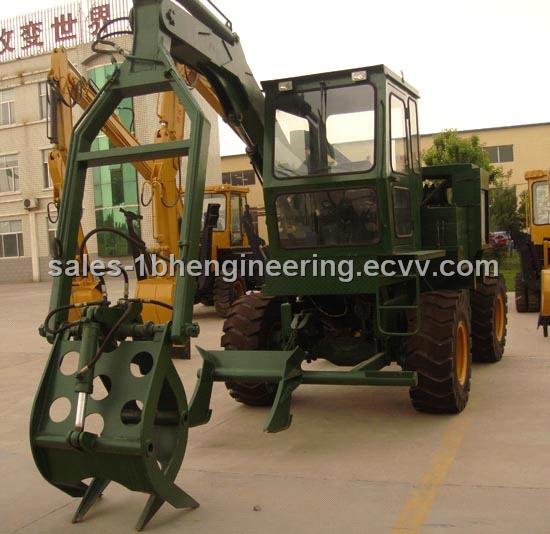

Hydraulic Sugarcane Loader

Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Related products from verified members

Used Wheel Loader Komatsu WA320-5 Original Pain...

Price:

Min. Order:1 Piece
Used Loader Kawasakai 85z

Price:

Min. Order:1 Set

Product Details

Place of Origin:	Beijing in China

Specifications

This BH7600 hydraulic sugarcane loader machine adopt hydraulic grabbing, and gear oil pump, the gear box structure will provide very nice working effect, easy operation and easy for maintenance

Carriage axles adopt 4 wheel driving, Hydraulic control, strong driving function and powerful, rear wheel steering, easy operation,

Grab arm adopts articulated big arm, equipped with pushing style collector, convenient to collect the sugar together.

Driving Cabin is simple and strict. Oil temperature gauge, water thermometer, all is clear at sight, easily know the whole working condition, adopt Germany or Italy imported oil tubing, and DONG FANG HONG car bridge (China famous car), provide you very durable and stable driving condition.

Main parameters:

ITEM	Parameter
Machine model	BH7600 hydraulic Sugarcane loader
Machine total weight	7600kg
Engine	Cumings 4102/4BT3.9-C100
Power	75KW/ 102horsepower
Speed	2300rpm
Generator	Direct Current Generator :28V, 45A
Battery	2 pieces battery, 80A free maintenance
Transmission	continuously variable transmission, easy operation and maintenance
Brakes	Hydraulic oil brake system
Emergency Braking	Pneumatic oil brake, easy operation, very good braking effect
Carriage axle	4 wheel driving, Hydraulic control, strong and powerful, rear wheel steering, easy operation
Standard Start-up power	12V power supply
Fork arm	Articulated big arm, pushing style collector, convenient to collect the sugar together,
Driving Cabin	simple and strict style driving cabin, oil temperature gauge, water thermometer, all clear at sight, easy know the whole working condition, adopt Germany or Italy imported oil tubing, adopt DONG FANG HONG( famous cam of China) car bridge
Machine ability
Holding and loading height (Max grab height	5.4m ( from the ground to the most high position of big arm),
Max dumping height	5300mm
Max grapple radius	5300mm
Fork width	1.5m wide
Grabbing capacity	1200-1300kg, hydraulic grabbing
Working efficiency	3000kg/min, 3 times/min
Hydraulic system working pressure	20Mpa
Maxing flow	63ml/r/63ml/r
Gradeability	25%
Max pulling force	29KN
Max. travelling speed	≤26km/h
Boom rotation angle	129°
Overall dimension (LWH)	490026002500mm
Min. ground clearance	580mm
Tread	2000mm
Wheel base	2600mm
Tires	23.1*26 farm using big tire.
Fuel consumption	≤225g/kw.h
Product guarantee	All time service, providing the service help at any time when the machine has any kind faults. Excluding the engine parts, we will provide any other parts for free If the machine has any kind fault within 6 months.
