Euroasia Group Corp. Limited
China Manufacturer with main products: Loader, Scaffolding, Forklift, Racking, Road Roller |
Motor Grader
| FOB Price: | 1,000.00 - 5,999.00 USD/Piece |
|---|---|
| Supply Ability: | 100 Piece/Pieces per Month |
| Shipping: | according to the quantity |
| Payment Terms: | L/C, T/T(Bank Transfer), D/A, D/P, Western Union |
Related products from verified members
-
Price:30,000.00-55,000.00 USD/SetMin. Order:1 Set -
Price:30,000.00-40,000.00 USD/SetMin. Order:1 Set
| Place of Origin: | Jiangsu in China |
|---|---|
| Packaging Details: | standard package |
Specifications

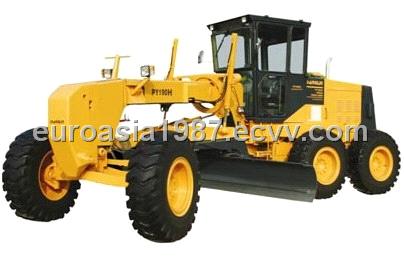

Desc ription of Motor Grader:
A motor grader, also called a road grader, a blade, a maintainer, is an engineering vehicle or construction equipment(construction machinery) with a large front dozer used to create a flat surface.
Features of Motor Grader-PY190H:
1. Equipped with reliable SDEC C6121 engine or genuine Cummins engine
2. Sing-handle electro-hydraulic controlled power-shift T/M, 6 forward & 3 reverse shifts makes operation easy and convenient
3. Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction
4. Ideal axel load allocation provides excellent stability while cutting hard surface
5. Serviceable, efficient hydraulic system enables every part to be fully used
6. Box-typed frame and advanced T/M enable it to complete heavy-duty work
7. A wide working range is accomplished through flexible blade suspension system and articulated frame
Applications of Motor Grader-PY190:
Motor grader PY190H is used to create flat surface in the airport or construction of paved road.
It is a ideal engineering vehicle/construction equipment (construction machinery), also can be used on ranches, large farms and plantations.
Specifications of Motor Grader-PY190:
| Overall Dimension | ||
| 1 | Length | 9140mm |
| 2 | Width | 2600mm |
| 3 | Height(To the top of the cab) | 3370mm |
| 4 | Wheel base | 6150mm |
| 5 | Tread | 2120(mm) |
| Main Technical Specification | ||
| 1 | Operating weight | 15200kg |
| 2 | Blade length | 4268mm |
| 3 | Blade height | 645mm |
| 4 | Blade width | 18mm |
| 5 | Max lifting height | 450mm |
| 6 | Max grading depth | 535mm |
| 7 | Min. turning radius | 7300mm |
| 8 | Pivot angle frame | 260 |
| 9 | Max turning angle(front wheel) | 490 |
| 10 | Oscillating angle of front axle | 320 |
| 11 | Front axle center ground clearance | 610mm |
| 12 | Traveling speed(Km/h), 6 forward and 3 reverse | |
| (1) Ⅰ gear forward | 6.5 | |
| (2) Ⅱ gear forward | 11.4 | |
| (3) Ⅲ gear forward | 14.6 | |
| (4) Ⅳ gear forward | 24.8 | |
| (5) Ⅴ gear forward | 30 | |
| (6) Ⅵ gear forward | 49.2 | |
| (7) Ⅰ gear reverse | 6.5 | |
| (8) Ⅱ gear reverse | 14.6 | |
| (9) Ⅲ gear reverse | 30 | |
| Diesel engine | ||
| 1 | Model | Cummins engine 6CTAA8.3-C185 (TIER2) |
| 2 | Type | Direct injection. Turbocharged. Water cooling |
| 3 | Rated output | 138 kW |
| 4 | Inter-bore of cylinder/Stroke | 114/135 (mm) |
| 5 | Total exhaust of cylinder | 8.3(L) |
| 6 | Power of start motor | 3.7(KW) |
| 7 | Voltage of starting motor | 24(V) |
| 8 | Rated speed | 2200(r/min) |
| 9 | Max. Torque | 857(N.M) |
| 10 | Starting type | Electric |
| 11 | Min. specific fuel consumption | 211(g/Kw.h) |
| 12 | Net weight | 617(kg) |
| Transmission System | ||
| 1.Torque Converter | ||
| 1 | Model | WG180 (ZF technology) |
| 2 | Type | 3-elements.single stage |
| 3 | Torque ratio | 2.52 |
| 4 | Cooling type | Pressure oil circulating |
| 2.Transmission case | ||
| 1 | Model | WG180 (ZF technology) |
| 2 | Type | power shift, single-shift lever, natural-shift lock device |
| 3 | Gear shift position | 6 Forward and 3 reverse gears |
| 3.Axle and Tire | ||
| 1 | Type of main reducer | spiral bevel gear, single stage |
| 2 | Gear ratio of main reducer | 3.583 |
| 3 | Type of final reducer | Single stage chain-drive |
| 4 | Gear of ratio of final reducer | 3.75 |
| 5 | Gear ratio | 13.436 |
| 6 | Tandem drive | Double row roller-chains |
| 7 | Size of tire | 17.5-25-12PR |
| Working Device Hydraulic System | ||
| 1 | Model of oil pump(include steering pump) | CBGj2045/1025 |
| 2 | System pressure | 175(kgf/cm2) |
| 3 | Model of distribution valve | HUSCO5000-D |
| 4 | Hydraulic check valve | KAYABA technology |
| 5 | Model of oil motor | EATON, JS-130 |
| Steering System | ||
| 1 | Type | Fore Tire deflexion |
| 2 | Model of steering gear | BZZ1-E160B/ FKA-153022 |
| 3 | System pressure | 15MPa |
| Brake System | ||
| 1 | Type of traveling brake | Hydraulic assisted and inner-expanding brake |
| 2 | System pressure | 120(kgf/cm2) |
| 3 | Type of parking brake | Mechanical and inner-expanding brake |
| Cylinder size | ||
| 1 | front wheel steering cylinder | Type |
| No-bore X rod X stroke | ||
| 2 | Front wheel leaning cylinder | Type |
| No-bore X rod X stroke | ||
| 3 | Blade lifting cylinder | Type |
| No-bore X rod X stroke | ||
| 4 | Power tilting cylinder | Type |
| No-bore X rod X stroke | ||
| 5 | Hinge turning cylinder | Type |
| No-bore X rod X stroke | ||
| 6 | Drawbar shift cylinder | Type |
| No-bore X rod X stroke | ||
| 7 | Blade side shift cylinder | Type |
| No-bore X rod X stroke | ||
| 8 | Scarifier cylinder | Type |
| No-bore X rod X stroke | ||
| 9 | Front blade cylinder | Type |
| No-bore X rod X stroke | ||
| 10 | Ripper cylinder | Type |
| No-bore X rod X stroke | ||
| Oil Capacity | ||
| 1 | Fuel(diesel) | 350L |
| 2 | Engine lubricating oil | 27L |
| 3 | Oil for converter and gear box | 45L |
| 4 | Oil for hydraulic system | 70L |
| 5 | Oil for driving rear axles | 18L |
| 6 | Tandem box | 84L |
