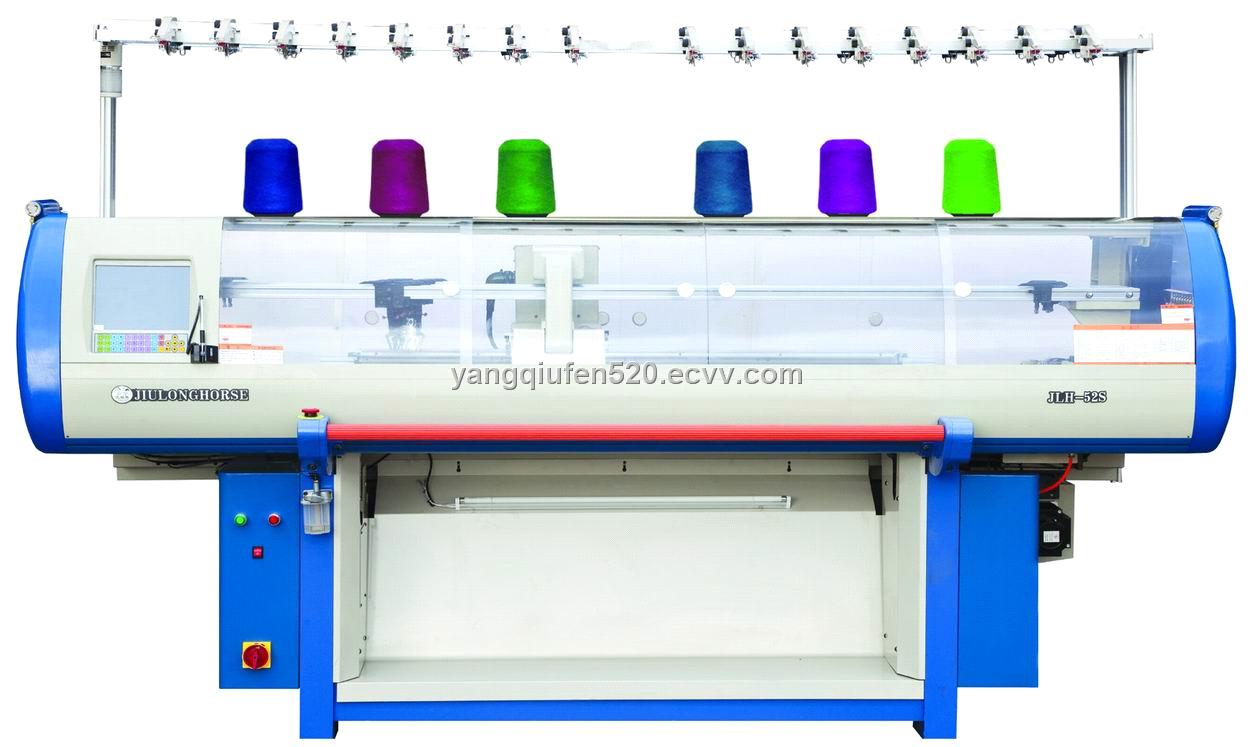

Full Functional Jacquard Flat Knitting Machine

FOB Price:	16,000.00 - 18,000.00 USD/Set
Supply Ability:	800 Set/Sets per Month
Shipping:	30 DAYS AFTER THE RECEIPT OF YOUR L/C OR T/T.
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Flat Knitting Machine (HS-122S)

Price:8000.00-15000.00 USD/Set

Min. Order:1 Set
Used Circular Knitting Machine for Sale

Price:10,000.00-50,000.00 USD/Set

Min. Order:10 Sets
4 TRACKS HIGH SPEED SINGLE JERSEY CIRCULAR KNIT...

Price:18,000.00-23,000.00 USD/Set

Min. Order:1 Set
Reed Bed Mat Knitting Machine

Price:

Min. Order:1 Set
Advanced Computerized Jacquard Pantyhose Circul...

Price:

Min. Order:1 Set
Automatic Glove Knitting Machine

Price:2,800.00-3,000.00 USD/Set

Min. Order:1 Set

Product Details

Place of Origin:	Jiangsu in China
Packaging Details:	STANDARD EXPORT PLYWOOD PACKAGING

Specifications

Model	JLH-152S
Needle bed	Length: 52〞
Needle bed	The steel needles are inserted on the needle bed. Replaceable Segment can be available when broken down.
Knitting width	Variable stroke. Max 52〞(132mm)
Gauge	3G, 5G, 7G, multi-gauge3-5-7G, 8G, 9G, 12G, 14G, 16G
Knitting speed	Knitting speed varies according to gauge and knitting condition. MAX. 1.2m/sec., 32 speed selection programmable command control.
Knitting system	One carriage with single system equips with high-position roller
Knitting cam	Composite design. Each system can perform Loop+tuck+not knitting simultaneously.
Transfer cam	Compound Knitting cam system, each system can transfer from the front to rear, rear to front or both front and rear simultaneously without direct restriction . Auto racking and auto receive.
Stitch cam	Each stitch setting is controlled by a stepping motor . It has 24 stitches of independent selections and each of them range from 00-99 steps for knitting pattern.
Needle selection	Each system has 4 sets hi-tech needle selectors. Double cam system equips with totally 8 sets needle selectors, which can be installed or removed simply from the carriage and maintained easily.
Yarn carriers	8 sets yarn carriers on 4 double side rails, switchable in any area within the knitting width. Also can be equipped with intarsia yarn carrier for intarsia pattern. (Optional device).
Sinker system	This system composes by two additional pieces of sinker needle bed. The sinker presser degree is adjustable the positions by knitting program command.
Racking system	Servo motor control, the programmable racking positions within 2 inches, each also has 1/4, 1/2and 3/4 micro adjustable positions.
Main take down roller	32 levels changeable tensions selection, adjustable automatically on each level. Can change the roller tension on the operation panel.
Carriage drive system	AC servo motor control, tooth shape driving belt, 32 section speeds limited built in. Knitting speed can be changed flexible depends on the knitting requirement.
Stop motion	Yarn breaking, knot, press off, needle break, yarn float, roll back, wrong racking, wrong sinker position, needle shock, excessive yarn, and reaching on production target offer, the machine will automatically stop.
Controller	Built-in controller. Data input by hand or USB memory disc. Stored program for flat knitting machine.
Memory capacity	1024× 4096 hung memory for the width and pattern length design.
Data input	USB memory interface.
Language display	English and Chinese are standard versions. Other languages can be supplied with customer’ s request. (Optional software)
Power supply	One phase AC 220V 1.2 KVA
Dimension & Weight	LengthWidthHeight: 29090200cm. Net weight: 1400kg.

All the contents of this catalogue are subject to change without notice.
