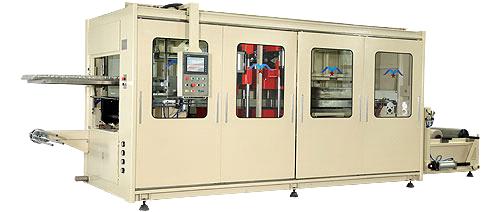

Automatic Vacuum Forming Machine (QZC50-76/36-CWF)
| FOB Price: | 120,000.00 - 130,000.00 USD/Set |
|---|---|
| Supply Ability: | 5 Set/Sets per Month |
| Payment Terms: | L/C, T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|
Specifications
Detailed Product Description:
Three Working Position : Forming / Cutting / Stakcing
It' fully automatic forming,cutting,stacking in line.
Function :
The machine is designed to produce all kinds of plastic products , It’s fully automatic forming , cutting in line , stacking , edge rewindering .
Feature :
1. Mechancial , Pneumatic and Electrical Combination . All working action is controlled by PLC . Touch Screen Input , easy and convenient .
2. Three Working Position : Forming / Cutting / Stakcing .
3. Pressure / Negative Forming assist with Plug
4. Upper or Lower Mold Forming Method
5. Servo Motor Feeding , Feeding Length Stepless Adjust , High Speed and Accurate .
6. Upper Heater , Four Section Heating .
7. Heater with Intellectual Temperature Control System , automatic supply the heating,
Individual Heater Control , Touch Screen Digitial Input , Mini-adjust & Precision and
Accurate , Fast Heating ( Only 3 min from 0-400 degree ) . Stable and Reliable .
It won’t effect by outter voltage , lower power consumption , longer life of far infrared
ceramic heater .
8. Servo Motor Stacking , Finished Production Accounting .
9. All production data and technical parameter store and recall function .
10. Edge Automatic Rewindering .
11. Feeding China Width separate adjust or Motor adjust .
12. Heater automatic push-out function .
13. Auto Roll Sheet Loading , Reduce the Working Labout .
The machine is designed to produce all kinds of plastic products , It’s fully automatic forming , cutting in line , stacking , edge rewindering .
Feature :
1. Mechancial , Pneumatic and Electrical Combination . All working action is controlled by PLC . Touch Screen Input , easy and convenient .
2. Three Working Position : Forming / Cutting / Stakcing .
3. Pressure / Negative Forming assist with Plug
4. Upper or Lower Mold Forming Method
5. Servo Motor Feeding , Feeding Length Stepless Adjust , High Speed and Accurate .
6. Upper Heater , Four Section Heating .
7. Heater with Intellectual Temperature Control System , automatic supply the heating,
Individual Heater Control , Touch Screen Digitial Input , Mini-adjust & Precision and
Accurate , Fast Heating ( Only 3 min from 0-400 degree ) . Stable and Reliable .
It won’t effect by outter voltage , lower power consumption , longer life of far infrared
ceramic heater .
8. Servo Motor Stacking , Finished Production Accounting .
9. All production data and technical parameter store and recall function .
10. Edge Automatic Rewindering .
11. Feeding China Width separate adjust or Motor adjust .
12. Heater automatic push-out function .
13. Auto Roll Sheet Loading , Reduce the Working Labout .
Technical parameters:
| Sheet Width (mm) | 500-760 | |
| Sheet Thickness (mm) | 0.2-1.5 | |
| Max Roll Sheet (mm) | 600 | |
| Forming Mold Stroke (mm) | 2×155 | |
| Cutting Mold Stroke (mm) | 155 | |
| Cutting Base Stroke (mm) | Max 100 | |
| Max Forming Area (mm2) | 720×360 | |
| Max Forming Depth / Height (mm) | 80/50 | |
| Max Cutting Force(kgf) | 30000 | |
| Working Capacity ( Cycle / min) | 4-18 ( Max Pacity is 18 Cycler / Per Min ) | |
| Forming Cooling | Water Cooling | |
| Air Source | Air (m3/ min) | ≥5 |
| Aire Pressure (MPa) | 0.8 | |
| Vacuum Pump | Busch R5 0040 | |
| Power | 3 Phaser 4 Line 380V50Hz | |
| Heater (kw) | 43.2 | |
| Max Power (kw) | 49.4 | |
| Max Dimension (L×W×H) (mm) | 7320×2100×2380 | |
| Max Weight (kg) | ≈7500 | |
Specification :
| PLC | Taiwan Delta |
| Touch Screen Monitor ( 10.4″inch /Color ) | Taiwan Delta |
| Feeding Servo Motor(3.0kw) | Taiwan Delta |
| Stacking Servo Motor (1.5kw) | Taiwan Delta |
| Heater (72PCS ) Heater | GERMAN |
| Solid State Relay (72 PCS ) | CHINA |
| Contactor | German Siemens |
| Thermo Relay | German Siemens |
| Relay | JAPAN Omron |
| Vacuum Pump | Busch R5 0040 |
| Pneumatic | JAPAN SMC |
| Cylinder | CHINA |
