GIGAVAC Vacuum Reed Relay High Voltage Relay
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Quick Details
- Contact Load: High Power
- Protect Feature: Sealed
- Size: Miniature
- Theory: Voltage Relay
- Brand Name: GIGAVAC
Specifications

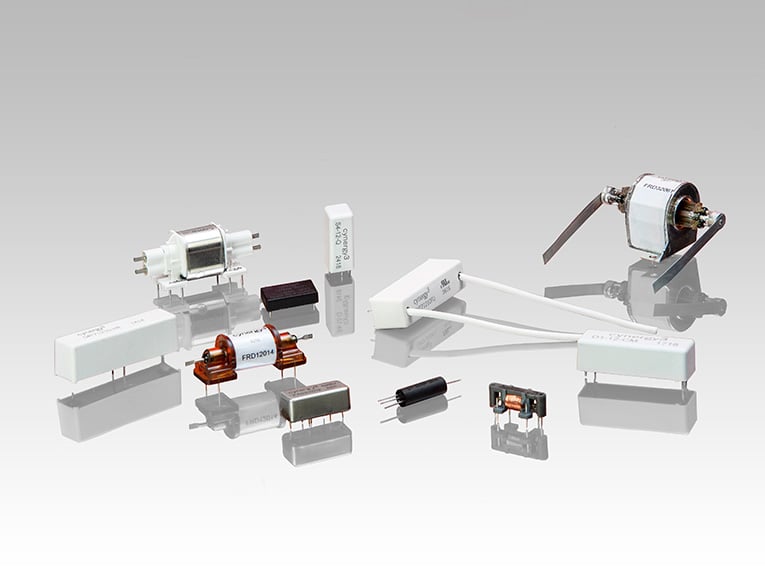

Reed Relays
GIGAVAC reed vacuum relays use vacuum as dielectric and have following features:Small size, can process RF high-frequency.Large coil resistance, low power consumption.Short operation time, fast speed.RF shield can ensure relay with no mutual interference during intensive assembly.Circuit board using pin installation, easy to install and connect.Vacuum dielectric, low and stable contact resistance.
P/N |
Rated Working Voltage(KV) |
Load Switch |
Rated Open Voltage(kV Peak) DC or 60Hz |
Contact Form |
Max CONT. Current(Amps) |
Contact Capacitance(pF) |
Max Contact Resist(0hms) |
Max Open Time(ms) |
Max Rel. Time(ms) |
Shock 11ms 1/2 Sine(gpeak) |
Weight Nom(g) |
GR3BJA335 |
1.5KV |
No |
1.5 |
SPST-NO |
3 |
0.3/4 |
0.05 |
.8 |
.5 |
100 |
7 |
GR2DNA |
3KV |
No |
3 |
SPST-NO |
2 |
1.5/6 |
0.1 |
1 |
1 |
100 |
7 |
GR6FNA218 |
5KV |
No |
5 |
SPST-NO |
8 |
43924 |
0.05 |
3 |
1 |
100 |
24 |
GR6HBA318 |
7KV |
No |
7 |
SPST-NO |
10 |
0.4/5 |
0.05 |
2 |
1 |
100 |
24 |
GR6JNB218 |
8KV |
No |
8 |
SPST-NC |
8 |
0.6/2.5 |
0.05 |
3 |
2 |
100 |
24 |
GR5LTA |
10KV |
No |
10 |
SPST-NO |
5 |
43838 |
0.25 |
2 |
2 |
100 |
28 |
GR5LTB |
10KV |
No |
10 |
SPDT-NC |
5 |
43838 |
0.25 |
2 |
2 |
100 |
28 |
GR5MTA |
15KV |
Yes |
15 |
SPST-NC |
5 |
43838 |
0.25 |
3 |
2 |
100 |
28 |
