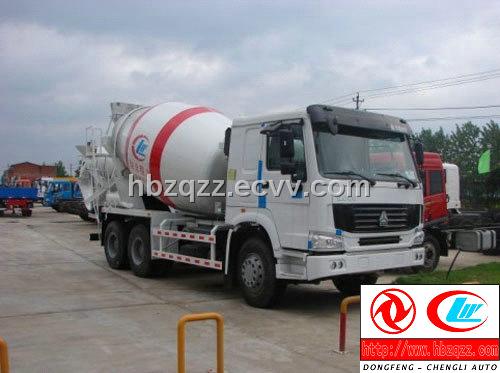

Concrete Mixer Truck

Technical parameters
Product Name: heavy truck HOWO concrete mixer Price: mixer prices
Notice batch: 188 total mass: 25000
Rated Quality: 10,870 Curb weight: 14000
Top speed: 90 (km / h) close to the departure angle (°): 16/19
Front / rear overhang: 1500/2550, 1500/2575, 1500/2300, 1500/2325 front passenger (person): 2
Spring: 9 / 12, 10/12, 4 / 12 Fuel type: Diesel
Number of tires: 10 Tire Size: 11.00-20,12.00-20,11.00 R20, 12.00R20
Front track: Rear track 2047,1995: 1830/1830
Number of axes: 3 Wheelbase: 3625 +1350,3600 +1400,
Dimensions (mm): 2022,2041
Chassis model: China Heavy Duty Truck Group Jinan Commercial Vehicle Co., Ltd. / -
Cargo box size (mm): -
Note: Mixing volume of 10 cubic meters. Also for the front suspension rear suspension (mm): 1500/2300, 1500/2325
  Engine parameters
Engine Manufacturer: Engine Model: Engine displacement (ml): Engine power (kw):
China Heavy Duty Truck Group Co., Ltd.
China Heavy Duty Truck Group Co., Ltd.
China Heavy Duty Truck Group Co., Ltd.
China Heavy Duty Truck Group Co., Ltd.
China Heavy Duty Truck Group Co., Ltd.
China Heavy Duty Truck Group Co., Ltd. WD615.95
WD615.95E
WD615.96
WD615.96E
WD615.95C
WD615.96C 9726
9726
9726
9726
9726
9726
 247
247
276
276
249
279
  Chassis Parameters
Chassis Type ZZ1251N3641C
Engine Model WD615.95 displacement (ml) / Power (kw) 9726/247 (336 hp)
Cab lying flat steel spring headband number (front / rear) 12/12
Number of axes 3 Wheelbase (mm) 3600 +1350
Number of tires 10 tires 11.00-20,11.00 R20,
Approach / departure angle (.) 20.5/22 front overhang / rear overhang (mm) 1320/1350
Track (front / rear) (mm) 3600 +1350 driver type 6 × 4


Concrete mixer Description:
My company specializes in manufacturing Dongfeng 145 concrete mixer, concrete mixer truck Dongfeng 153, Dongfeng Hercules concrete mixer, concrete mixer Dongfeng, liberation Shuangqiaoshan concrete mixer, concrete mixer truck Steyr, Auman concrete mixer, Hongyan concrete mixer truck concrete mixing and other special projects.

Our concrete mixer manufacturing are 3 cubic meters, 3.5 cubic meters, 4 cubic meters, 5 cubic meters, 6 cubic, 8 cubic, 9 cubic meters, 10 cubic, 12 cubic, 14 cubic meters, and other specifications to meet different customer needs, use the chassis well-known brands, pumps, hydraulic motors, gear selection Eaton, Italy Bonfiglioli other domestic and international famous brands, to ensure vehicle performance, stability and security.

Mainly by the concrete mixer truck chassis, the mixing tube, the transmission system (drive), hydraulic drive system, water system, installed (into) materials and material unloading system, the discharge chute, platform, control systems and protective equipment components.

Hydraulic parts are imported brand-name products: use the famous American BONFIGLIOLI (Bonfiglioli) and the Italian PMP, Germany, ZF (Chai Ephron) and the U.S. Sarbanes series reducer, and the United States EATON (Eaton), German Lux Music and the U.S. Sarbanes and other professional brands of pumps and motors, imported hydraulic parts, stable and reliable performance.


Mixing tube: the model used in the mixing tube is a more general form of the structure, the mixing tube with pear-shaped structure, the process of cleaning water and transportation, as required by adding the mixing water added, by the mixing tube head Department of the feed tube into the mouth.

Transmission: The mixing drum drive way to the engine as power source, the engine power take off to take back the power to pass through the shaft to a variable piston pump, plunger by quantitative motor oil, then stir through the reducer drive cylinder rotation.

Mixing tube's access to material systems (loading and unloading body): It is important to assist the work of mixing tube device.

Control system: control of the entire mixer parts, control panel, open the "SHAPE" slot, is the joystick space; and the opening slot on the latter part of the limited bit hole to fix the joystick position. The control system through the rear of a car left and right joystick to control the mixing tube in the positive, reverse and speed, thereby to complete the access to materials and mixing action.

Water supply system: concrete mixer is mainly used to clean the water supply system mixing device. The model there are two types of water supply system, a centrifugal pump is a water supply system; one is the pressure tank water supply system for the user option.

Manufacturers selling cars: Dongfeng Hercules Auman concrete mixer concrete mixer concrete mixer Steyr Bridging the liberation of concrete mixer
