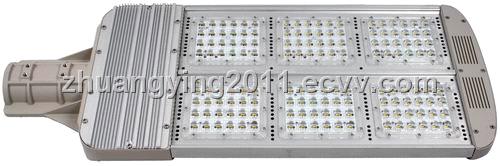

Cree Chip LED Streetlight

Supply Ability:	5,000 Piece/Pieces per Month
Shipping:	7-10working days
Payment Terms:	L/C, T/T(Bank Transfer), Western Union

Inquiry Now

Place of Origin:	Guangdong in China
Packaging Details:	1pc/carton

Specifications

Model No.		SPL-144
Replacement		400W High Pressure Sodium Lamp
LED Light Source		144× 1W Cree / Lumileds Rebel LED
LED Luminous Efficiency		107-122lm/w
Lamp Total Power		180W
Power Efficiency		> 89%
Lamp Total Flux		> 15,000lm
Lamp’s Efficiency		> 80lm/w
Average Illumination and Effective Illuminated Area	8M Height	26m×10m ≥ 46LUX
	10M Height	33m×13m ≥ 30LUX
	12M Height	40m×16m ≥ 21LUX
Color Index(CRI)		Ra > 75
Color Temperature(CCT)		Cool white: 5000-6500K Pure white: 4000-5000K Warm white: 2700-3500K
Beam Angle		Horizontal Axis: 120° / 140° ; Vertical Axis: 60° / 68°
Light Distribution Curve (Beam Pattern)		Asymmetric(Bat Wing) / Rectangular Beam
Input Voltage		85-300V AC
Frequency Range		50-60Hz
Power Factor(PF)		> 0.98
Total Harmonic Distortion(THD)		< 20%
Storage Temperature		－40℃-+80℃
Working Environment		－40℃-+50℃; 10%-90%RH
Junction Temperature(Tj)		60℃±10% (Ta=25℃)
Light Body and Lampshade Material		Aluminum Alloy and PC
Working Lifetime		> 50,000hrs
IP Rating		IP66
Net Weight		12.2kg
Gross Weight		14.0kg
Package Size(mm)		830×380×160 (1PC)
