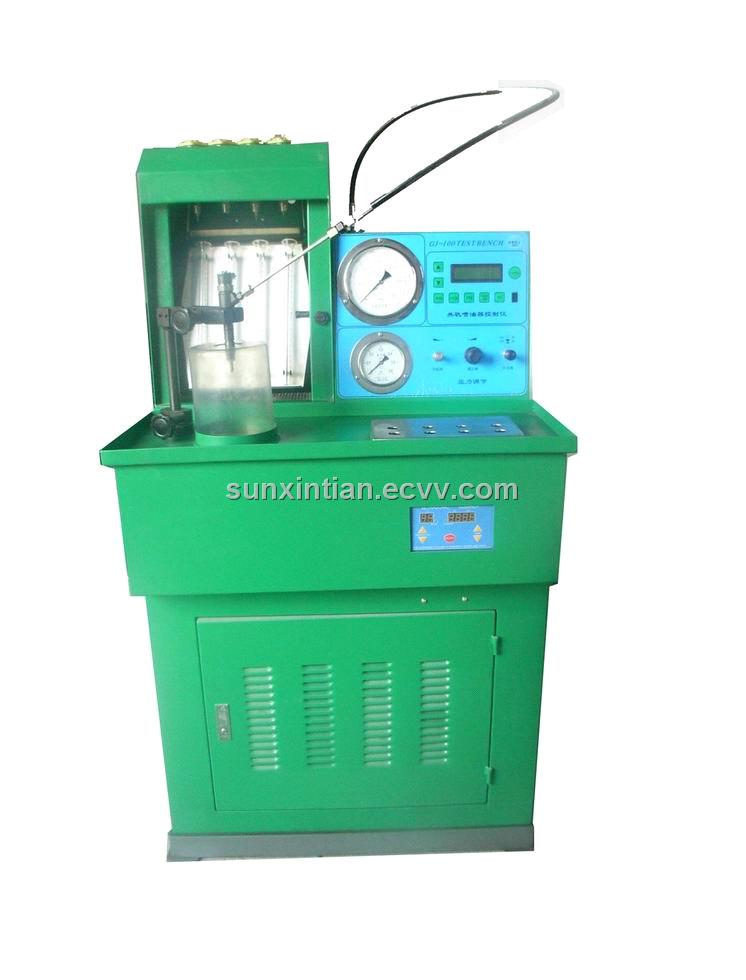

Common Rail Injector Tester (JH-1000)

Supply Ability:	1,000 Short Ton per Year
Shipping:	within seven days at Qingdao China after production time and pay the balance payment
Payment Terms:	L/C, T/T

Inquiry Now

Place of Origin:	Shandong in China
Packaging Details:	packed in the plywood case

Specifications

Having been exported to a few foreign countries and regions,Common Rail Injector Tester (JH-1000) is of good quality and reasonable price.

Function

· Measuring fuel delivery of a common rail injector

· Checking injector nozzle spray pattern

· Cleaning sophisticated components of injectors

Specification

1, Using pneumatic amplifier actuator to generate high pressure fuel source to feed the injector

(1)Required shop compressed air supply, 6-8bar,out flow 150L/min

(2)Fuel Pressure range 0-1200bar

(3)Fuel type: diesel fuel

(4)Fuel Pressure stability +/-50bar

2, Simulate engine ECU signals to drive either a solenoid or a piezoelectric actuator in a common rail injector

(1)Adjustable injection frequency, represented by engine speed, 0-4000rpm

(2)Adjustable injection pulse width or injection duration, 0-6ms

3, Fuel delivery measurement

(1)Injection counter set: 0-9999 injections

(2)Fuel delivery measured by glass graduates, for both fuel injection and injector leakage

4, Fuel filtration: 5µm

5, Integrated ultrasonic cleaner

(1)Power: 360W

(2)Basin dimension: 300×240×150mm

6, Main AC power, single phase, 500W, 220V/50Hz, or 115V/60Hz, or per customer specification

7, Test bench base dimension: 1550×850×650mm

8, Test bench weight: 200kg

9, Rich accessories
