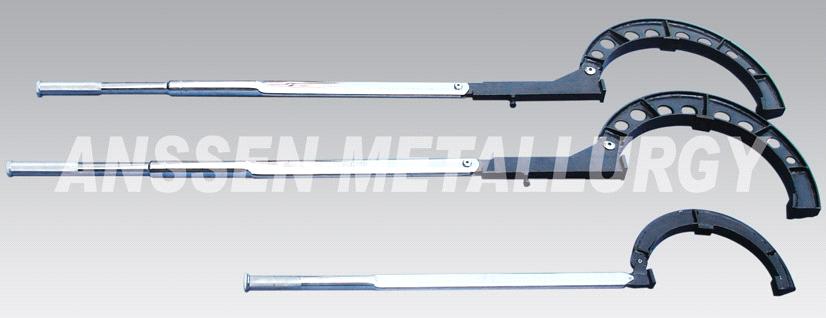

Electrode Troque Wrench

Inquiry Now

Related products from verified members

Adjust ratchet wrench

Price:1.00-10.00 USD/Set

Min. Order:1,000 Sets
Wrench,double open end

Price:

Min. Order:

Product Details

Place of Origin:	Liaoning in China

Specifications

Graphite electrodes are used in Electric Arc Furnace and Ladle furnace. For the need of manufacturing and usage, the electrodes are much longer in the actual process of production, and they will be connected with many pieces of short electrodes by conical graphite nipples. The effectiveness of energy utilization and normal melting work is greatly influenced the correct joint between graphite electrodes.

In the using process of torque wrench, in order to guarantee the good using of graphite electrodes, the requirements are as follows:

1. The conical nipple’ s threads has no damage, no dust and impurities;

2. There should have an optimum value for wrenching electrodes, the strength should be neither too strong nor too weak. If the wrenching strength is too strong, the electrodes would twist off easily. If too weak, it might cause electric arc in the joint of electrodes, the joint would be sudden rubefacient, oxidized, pencilling, and then break off., so properly controlling the wrenching strength is very important.

S/N	Electrode diameter	Wrench type	Torque value	Accuracy	Remark
S/N	mm	Wrench type	N. M	%	Remark
1	φ 150	ANSSEN 150 －1	150	± 3	Auto-alarm
2	φ 200	ANSSEN 220 －1	220	± 3	Auto-alarm
3	φ 250	ANSSEN 420 －1	420	± 3	Auto-alarm
4	φ 300	ANSSEN 580 －1	580	± 3	Auto-alarm
5	φ 350	ANSSEN 800 －1	800	± 3	Auto-alarm
6	φ 400	ANSSEN 1200－1	1200	± 3	Auto-alarm
7	φ 450	ANSSEN 1500－1	1500	± 3	Auto-alarm
8	φ 500	ANSSEN 1900－1	1900	± 3	Auto-alarm
9	φ 550	ANSSEN 2300－1	2300	± 3	Auto-alarm
10	φ 600	ANSSEN 2600－1	2600	± 3	Auto-alarm
