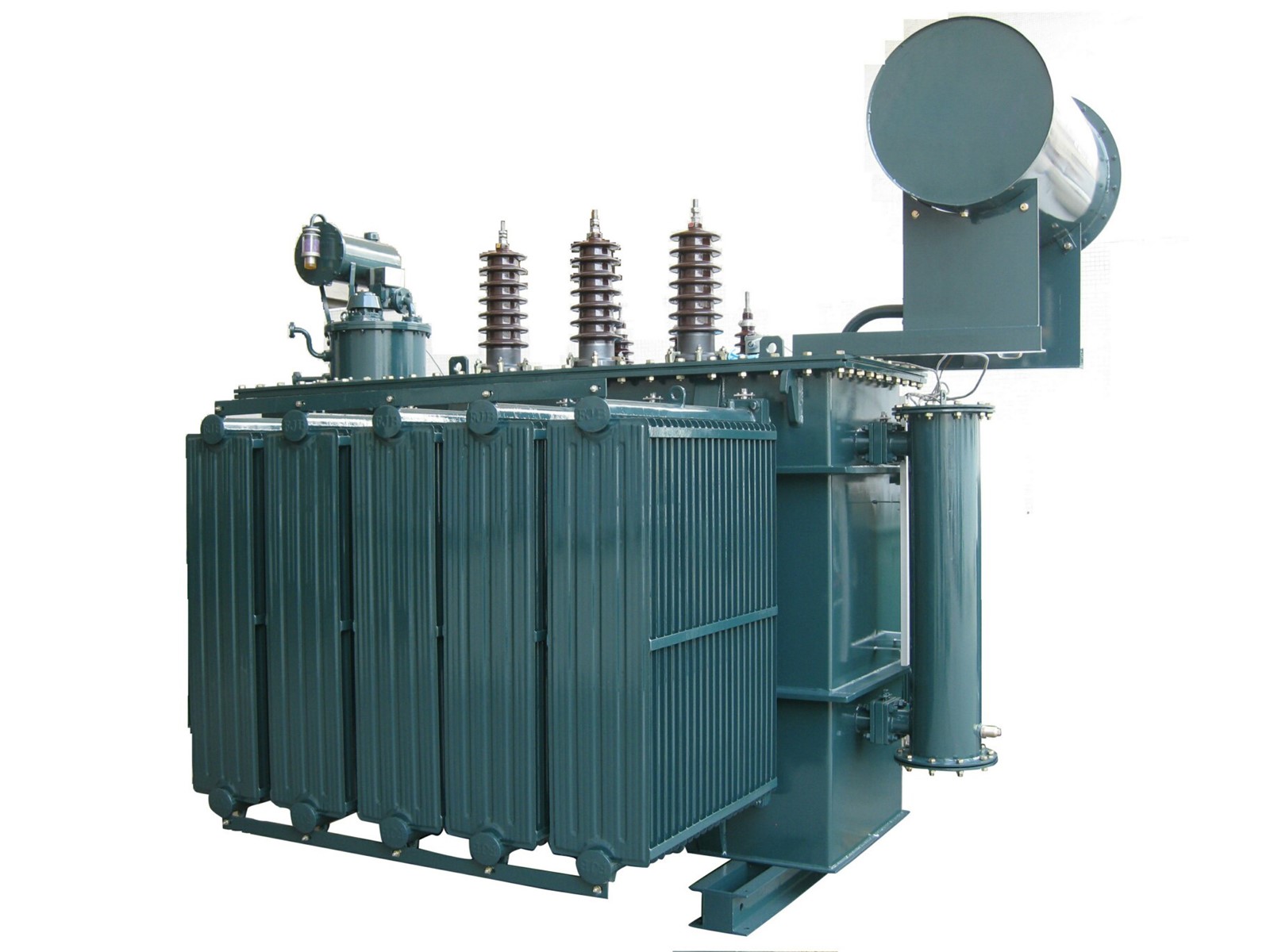

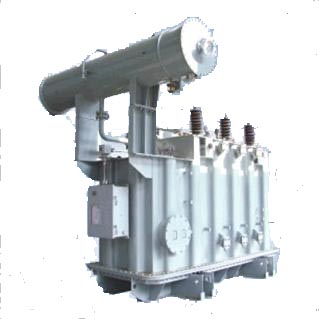

33kV Oil-Immersed Power Transformer (SFSZ9)
| FOB Price: | 5,000.00 - 80,000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | 60 days to Ningbo / Shanghai port |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | wooden pallet or other method approved |
Quick Details
- Coil Number: 2
- Coil Structure: Coil
- Phase: Three
- Usage: Power
- Model Number: SFZ10-35
- Brand Name: Tianan Electric
- Insulation medium: Oil
- Voltage rating: High voltage
- Application: Substation, power plant
- Installation: Outdoor, fixed
- Standards: IEC, GB, ANSI
- Certificate: KEMA, TUV, CTQC
Specifications
12~36kV
Three-phase oil immersed transformer
NINGBO TIANAN (GROUP) CO.,
LTD.
1. General
(1) Application:
>> 12, 24,36KV class
transformers are widely used in power transmission and distribution stations,
industry plants, Generation Setup Unit (GSU).
>>
They have the characteristic of high efficiency, low loss and maintenance
free.
(2) Type and Rating
**Capacity range
:50-50000KVA.
**Secondary voltage: 415V ,400V etc.
**Frequency
:50Hz ,60Hz.
**Type: Single phase ,three phase.
**No-load tap
changer and on-load tap changer.
**ONAN and ONAF.
**Set-up and
set-down type.
(3) Standard: IEC60076-1, IEC60076-2, IEC60076-5, IEC60317,
ANSI, IEEE, AS, etc.
2. Conditions of service
(1) Altitude: Up to 1,000m above sea level.
(2)
Ambient temperature:
**Max: +40oC.
**Average (daily, Max.):
+30oC.
**Average (yearly, Max.): +20oC.
**Min: -45oC.
(3)
Environment: Outdoor.
(4) Special conditions:
It may be consulted
between manufacturer and customer.
Technical Data of Typical Products
Capacity
KVA
Voltage and tap range
Connection
No-load loss
(kW)
Load loss
(KW)
NO-load current
(%)
Impedance
(%)
Dimensions (mm)
LxWxH
HV (kV)
MV (kV)
LV (kV)
50
35
± 5
0.4
Dyn11
Yyn0
0.21
1.27/1.21
2.00
6.5
1100x845x1715
100
0.29
2.12/2.02
1.80
1190x915x1780
125
0.34
2.50/2.38
1.70
1220x1040x1780
160
0.36
2.97/2.83
1.60
1240x1070x1810
200
0.43
3.50/3.33
1.50
1380x780x1875
250
0.51
4.16/3.96
1.40
1540x880x1820
315
0.61
5.01/4.77
1.40
1440x800x1975
400
0.73
6.05/5.76
1.30
1660x825x1995
500
0.86
7.28/6.93
1.20
1710x865x2030
630
1.04
8.28
1.10
1630x1235x2070
800
1.23
9.90
1.00
1655x1415x2120
1000
1.44
12.15
1.00
1860x1435x2220
1250
1.76
14.67
0.90
1890x1640x2260
1600
2.12
17.55
0.80
2050x1720x2390
630
3.15
6.3
10.5
Yd11
1.04
8.28
1.10
1630x1235x2070
800
1.23
9.90
1.00
1655x1415x2120
1000
1.44
12.15
1.00
1860x1435x2220
1250
1.76
14.67
0.90
1890x1640x2260
1600
2.12
17.55
0.80
2050x1720x2390
2000
2.72
19.35
0.70
2400x1900x2410
2500
3.20
20.70
0.60
2500x1930x2700
3150
35~
38.5
± 5
3.15
6.3
10.5
3.80
24.30
0.56
7.0
2600x2100x2800
4000
4.52
28.80
0.56
2830 x2350x2855
5000
5.40
33.03
0.48
2930x2480x2930
6300
6.56
36.90
0.48
7.5
3150x2330x3220
8000
± 2 x 2.5
3.15
3.3
6.3
6.6
10.5
11
YNd11
9.00
40.50
0.42
3295x3110x3345
10000
10.88
47.70
0.42
3450x3210x3440
12500
12.60
56.70
0.40
8.0
3620x3255x3500
16000
15.20
69.30
0.40
3980x3420x3650
20000
18.00
83.70
0.40
4030x3470x3690
25000
21.28
99.00
0.32
5050x4640x3930
31500
25.28
118.8
0.32
5120x4800x4030
Three phase on-load tap changer power transformer
Type
Voltage compose and Tapping range (kV)
Connection
No-load
Loss
(kW)
Load
loss
(kW)
No-
load current (I%)
Impedance voltage (%)
Transport weight (t)
Gross weight (t)
Dimensions
L×W×H (mm)
HV
LV
SZ9-2000/35
35
±3×2.5%
6.3
10.5
Yd11
2.88
18.7
1.00
6.5
4.93
5.97
3010×2070×2540
SZ9-2500/35
3.40
21.7
1.00
6.5
5.68
6.95
3040×2270×2610
SZ9-3150/35
4.04
26.0
0.90
7.0
6.08
7.90
3160×2300×2640
SZ9-4000/35
35
38.5
±3×2.5%
6.3
10.5
4.84
30.7
0.90
7.0
7.10
9.11
3300×2330×2890
SZ9-5000/35
5.80
36.0
0.85
7.0
8.47
10.86
3350×2520×3000
SZ9-6300/35
7.04
38.7
0.85
7.5
9.87
12.30
3680×2650×3050
SZ9-8000/35
9.84
42.8
0.75
7.5
12.55
15.30
4190×2930×3280
SZ9-10000/35
35
38.5
±3×2.5%
6.3
6.6
10.5
11
Ynd11
11.6
50.6
0.75
7.5
14.70
17.86
4620×3160×3400
SZ9-12500/35
13.7
60.0
0.70
8.0
17.35
20.05
4740×3200×3540
SZ9-16000/35
16.0
73.0
0.70
8.0
19.45
23.74
4810×3360×3790
SZ9-20000/35
18.9
88.3
0.70
8.0
27.50
34.95
4880×3540×4150
SZ9-25000/35
22.4
104.4
0.65
8.0
32.51
40.22
4920×3920×4200
SZ9-31500/35
26.6
125.3
0.65
8.0
37.73
45.53
5010×4270×4460
