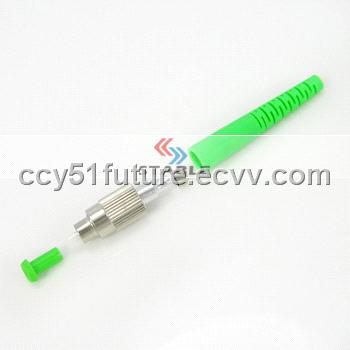

FC APC 3.0mm tunable fiber optic connector
| FOB Price: | 1.00 - 10.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece/Pieces per Day |
| Shipping: | 3-5 day |
| Payment Terms: | T/T(Bank Transfer) |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Shenzhen in China |
|---|
Specifications
The FC connector has a zirconia ceramic ferrule measuring 1.25mm O.D. with either a PC or APC end-face, and
provides optimum insertion and return loss. The LC connector is used on small diameter mini-cordage 2.0mm as
well as 3.0mm cable. LC Connectors are available in pre-assembled or kit (unassembled) formats. They feature
self-adjusting panel latches and a choice of mounting orientations with labeled polarity. A choice of zirconia
ceramic or phosphor bronze split sleeve is available.
Applications
- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTX.
Features:
- Precision mechanical dimension
- One Piece with pre-domed ceramic ferrule is designed for easily assembly.
- Meets Telecordia-GR-326-CORE specifications
- Low insertion loss
- Ultra low back reflection
- Corrosion resistant body
- Fixed key and activity key can be selected
- For 3.0mm, 2.4mm, 2.0mm jacket or 900um buffer.
Spec:
- Insertion loss:
0.20dB (SM)
0.25dB (MM)
- Return loss: 55dB (PC)
- Fiber compatibility: 62.5/125μm/50/125μm multiple mode and 9/125μm single mode
- Boot size: 3.0, 2.0 or 0.9mm
- Connectors type: SC, ST, FC, MTRJ, LC, E2000, MU, and more
- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTX.
Features:
- Precision mechanical dimension
- One Piece with pre-domed ceramic ferrule is designed for easily assembly.
- Meets Telecordia-GR-326-CORE specifications
- Low insertion loss
- Ultra low back reflection
- Corrosion resistant body
- Fixed key and activity key can be selected
- For 3.0mm, 2.4mm, 2.0mm jacket or 900um buffer.
Spec:
- Insertion loss:
0.20dB (SM)
0.25dB (MM)
- Return loss: 55dB (PC)
- Fiber compatibility: 62.5/125μm/50/125μm multiple mode and 9/125μm single mode
- Boot size: 3.0, 2.0 or 0.9mm
- Connectors type: SC, ST, FC, MTRJ, LC, E2000, MU, and more
