T-3801 Auto Mixer

Supply Ability:	500 Piece/Pieces per Month
Shipping:	1~2 weeks
Payment Terms:	T/T(Bank Transfer)

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Guangdong in China
Packaging Details:	cartons

Specifications

T-3801 System Overview

Describe:

　　T-3801 Intelligent conference system is microprocessor-controlled automatic conference mixer, designed to provide automatic mixing functions for installed sound, house of worship, public broadcast, multi-media classroom and conference application with complete functions, easy operation and clear sound. It has 8 input signal channels, each of them has automatic. T-3801 intelligent conference system automatically keeps the number of open microphones to a minimum, making background noise and feedback under control and providing improved clarity and audio quality.

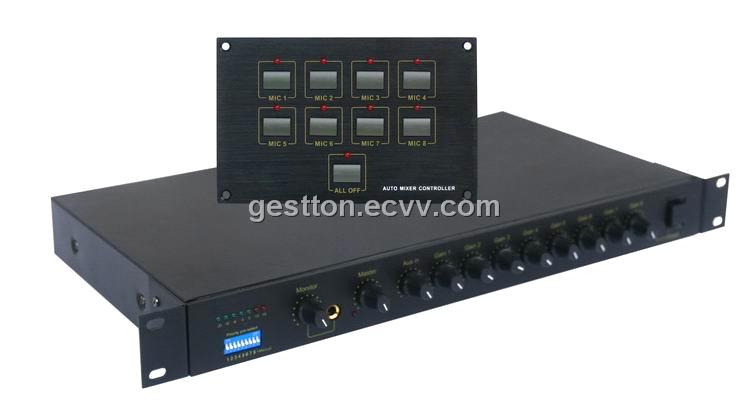

　T-3801

　8 Channels Intelligent Conference automatic Mixer

　T-3801C

　Auto Mixer Controller

　System Features:　

　　1, Eight balanced inputs for both mic- and line-level signals

　　2, +48V phantom power switchable on each channel

　　3, Individual gain and volume controls on each channel

　　4, Gate attenuation (adjustable)

　　5, Force-On/Off function – a voltage appears/disappears when the associated input’s gate opens or turns “on”/ “off”

　　6, Selectable NOMA (Number of Open Mics Attenuated) circuitry helps control feedback

　　7, Priority pre-select feature allows priority of each microphone to be independently assigned

　　8, Linking expandable up to 15 units (up to 120 channels) 120 microphones

　　9, Compression and limitation in effect on all channels

　　10, RCA group output for public address or other devices

　　11, RS-232 data port for PC microphone control

　　12, Optional camera tracking system available

　　13, Earphone monitor output and level control

　　14, A single 19" rack mountable
