Eaco Capacitor Co., Ltd.
China Manufacturer with main products: Capacitor, Polypropylene |

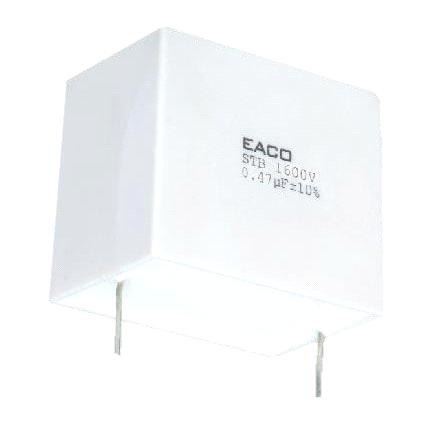

Film Capacitor (STB)
| Shipping: | 2~3 weeks |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|---|
| Packaging Details: | Cartons With Straps |
Specifications
1. GENERAL TECHNICAL CHARACTERISTICS
Dielectric: Polypropylene film
Construction: Extended double side metallized carrier film with internal series connection and metallized film
Coating: Solvent resistant plastic case with resin sealing.
Flame retardant execution (UL94V-0 ).
Leads: Tinned copper wire
Dielectric: Polypropylene film
Construction: Extended double side metallized carrier film with internal series connection and metallized film
Coating: Solvent resistant plastic case with resin sealing.
Flame retardant execution (UL94V-0 ).
Leads: Tinned copper wire
2. ELECTRICAL CHARACTERISTICS
Operating temperature range(case): - 40 to + 85 C
Capacitance: 0.001 to 1.5μ F
Rated Voltage: 630 to 2000 Vdc
Tolerance: ± 5%, ± 10%
Dissipation factor: Measured at 1000± 20 Hz AND 25± 5C.
When Cr≤ 0.1μ F, 3× 10-4;
When Cr>0.1μ F, 4× 10-4
Life expectancy: 100, 000 hours at Ur and 70 C
Operating temperature range(case): - 40 to + 85 C
Capacitance: 0.001 to 1.5μ F
Rated Voltage: 630 to 2000 Vdc
Tolerance: ± 5%, ± 10%
Dissipation factor: Measured at 1000± 20 Hz AND 25± 5C.
When Cr≤ 0.1μ F, 3× 10-4;
When Cr>0.1μ F, 4× 10-4
Life expectancy: 100, 000 hours at Ur and 70 C
3. TEST METHODS AND PERFORMANCES
Dielectric strength: 1.8Ur (DC) applied for 2s at 25± 5C(1 minute for type test)
Test voltage terminal to case: 3 KV 50Hz for 60 sec
Insulation resistance: 30000s but need not exceed 30GΩ (typical value), after 1 minute of electrification at 100Vdc (25± 5C)
Dielectric strength: 1.8Ur (DC) applied for 2s at 25± 5C(1 minute for type test)
Test voltage terminal to case: 3 KV 50Hz for 60 sec
Insulation resistance: 30000s but need not exceed 30GΩ (typical value), after 1 minute of electrification at 100Vdc (25± 5C)
