Home  >Products Catalog > LED Panel Light PDL-24W-36W-60*60

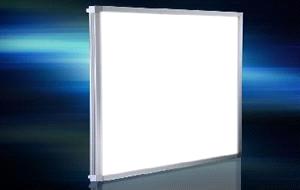

LED Panel Light PDL-24W-36W-60*60

Payment Terms: T/T(Bank Transfer)
Inquiry Now
Follow ECVV to get products trends and industry news

Related products from verified members

Place of Origin: Shenzhen in China

Specifications

Panel Light 24W 36W

APPLICATION

Stores,Offices,Conference Rooms,
Supermarket,Restaurants,Schools,Hotels,
Library's,Hospitals,Exhibition,Halls etc.
1Configuration Size
 Dimension: 594*594mm               lllumination Level





2 SPECIFICATIONS
Model NO.
SizeFt
 Power
(W)
LED
(PCS)
Color
enclosure
Lumens
Color Rendering
Index(CRI))
Power
Factor
Dimensions
(mm)
LED Output
current
Standard
High Lumens
CB180

PDL-24W
2*2ft
24
384
day light
2496
3072
-
>70Ra
≥95%
594*594
320mA
PDL-24W
2*2ft
24
384
day light
-
-
2457
>80Ra
≥95%
594*594
320mA
PDL-24W
2*2ft
24
384
cool white
2304
2880
-
>70Ra
≥95%
594*594
320mA
PDL-24W
2*2ft
24
384
cool white
-
-
2304
>80Ra
≥95%
594*594
320mA
PDL-24W
2*2ft
24
384
Warm white
2112
2688
-
>70Ra
≥95%
594*594
320mA
PDL-24W
2*2ft
24
384
Warm white
-
-
2150
>80Ra
≥95%
594*594
320mA
PDL-36W
2*2ft
36
576
day light
3744
4608
-
>70Ra
≥95%
594*594
480mA
PDL-36W
2*2ft
36
576
day light
-
-
3686
>80Ra
≥95%
594*594
480mA
PDL-36W
2*2ft
36
576
cool white
3456
4320
-
>70Ra
≥95%
594*594
480mA
PDL-36W
2*2ft
36
576
cool white
-
-
3456
>80Ra
≥95%
594*594
480mA
PDL-36W
2*2ft
36
576
Warm white
3168
4032
-
>70Ra
≥95%
594*594
480mA
PDL-36W
2*2ft
36
576
Warm white
-
-
3225
>80Ra
≥95%
594*594
480mA
3 LED ADVANTAGES
  Environmental friendly.
  Low heat.
  Noise free.
  Soft light beams and strobe flash free.
  Wide-range of adjustable voltage.
  High efficiency.
  Long life-span.
  No mercury or lead.
  No UV or radiation.

 4 Specification   24W,36W
 Light Source Low Power SMD LED
 Operating Voltage AC85-265V
 LED Operating Frequency 50~60Hz
 Ambient Temperature -40°+60°C
 Life Expectancy >50,000hrs
 Beam Angle   120°
  Day Light=6500°K
 Color Temperature(CCT) Cool white=4000°K
  Warm white=3000°K
 Frosted Cover Standard
 Built in Series Standard
 Wall Mounted Series Optional
 Suspended Series Optional
 Soft Dimmable Optional
 Body and Lamps hade Material Alluminum and PS
5 Product Guarantee
The validity of the product warranty is subject to the correct storage, installation, operation and
maintenance of this product. Failing to comply with the storage, installation operation and maintenance
routines will make the guarantee invalid.
6 User Guide
For indoor use only.
Do not use in a sealed environment;do not cover with insulation.
Do not look directly at the light when it's on.
Preferably do not directly expose to sunlight or place under high temperatures.
Pay attention to the voltage before using.
Do not touch,twist or replace when the power is on.
7 NORMES
CE (LVD)
EN60598-1:2008; EN60598-2-1:1989
CE (EMC)
EN55015:2006; EN61547 :1995+A1 :2001 ; EN61000-3-2 :2006 ; EN61000-3-3 :1995+A1 :2001+A2 :2005
RoHS
2002/95/EC; 2006/66/EC; EPA3050B:1996; EPA3060A; EPA3052:1996, EPA7196A, EPA3540C, EPA8270C,
ISO 14001 Rev 2004 Environmental Management System
ISO 9001 Rev 2000 Quality Management System
