Home >Products Catalog > LED STREET LAMP STR02-60-112-140-180W

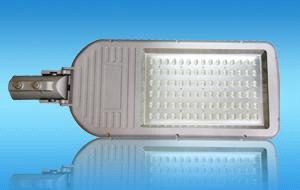

LED STREET LAMP STR02-60-112-140-180W

Payment Terms:	T/T(Bank Transfer)

Inquiry Now

Related products from verified members

E40/E27 LED street light bulb

Price:

Min. Order:
HUIFO 9 w Powerful Solar Road Light

Price:50.00-70.00 USD/Unit

Min. Order:100 Units
100w LED Shoe Box Light LED Street Light

Price:65.00 USD/Unit

Min. Order:10 Units
High-Power LED Street Light PCB

Price:

Min. Order:1 Piece
120W LED Street Lighting

Price:1.00-2.00 USD/Piece

Min. Order:1 Piece
LED Lighting

Price:1.00-2.00 USD/Piece

Min. Order:50 Pieces
High Power 500W LED Flood Light LED Tunnel Ligh...

Price:1.00 USD/Piece

Min. Order:10 Pieces

Product Details

Place of Origin:	Shenzhen in China

Specifications

LED Street lamp

60W 112W 140W 180W

APPLICATION

High ways and Road Systems,
Public and commercial walking paths,
community and landscape roads.

1Configuration Size

Dimension:

810*298*137mm

2 SPECIFICATIONS

Model NO.		Power (W)	LED (PCS)	Color enclosure	Lumens		Color Rendering Index(CRI))	Power Factor	Dimensions (mm)	LED Output current
Model NO.		Power (W)	LED (PCS)	Color enclosure	Standard	High Lumens	Color Rendering Index(CRI))	Power Factor	Dimensions (mm)	LED Output current

	STR02-60W	60	60	Day light	5100	7200	>70Ra	≥95%	-	1.7A
	STR02-60W	60	60	Cool white	4800	6600	>70Ra	≥95%	-	1.7A
	STR02-60W	60	60	Warm white	4500	6000	>70Ra	≥95%	-	1.7A
	STR03-84W	84	90	Day light	7650	10800	>70Ra	≥95%	810298137	2.4A
	STR03-84W	84	90	Cool white	7200	9900	>70Ra	≥95%	810298137	2.4A
	STR03-84W	84	90	Warm white	6750	9000	>70Ra	≥95%	810298137	2.4A
	STR04-112W	112	90	Day light	7650	10800	>70Ra	≥95%	810298137	3.2A
	STR04-112W	112	90	Cool white	7200	9900	>70Ra	≥95%	810298137	3.2A
	STR04-112W	112	90	Warm white	6750	9000	>70Ra	≥95%	810298137	3.2A
	STR05-140W	140	120	Day light	10200	14400	>70Ra	≥95%	-	4.0A
	STR05-140W	140	120	Cool white	9600	13200	>70Ra	≥95%	-	4.0A
	STR05-140W	140	120	Warm white	9000	12000	>70Ra	≥95%	-	4.0A
	STR06-180W	180	120	Day light	10200	14400	>70Ra	≥95%	-	5.1A
	STR06-180W	180	120	Cool white	9600	13200	>70Ra	≥95%	-	5.1A
	STR06-180W	180	120	Warm white	9000	12000	>70Ra	≥95%	-	5.1A

3 Specification

14W,18W,28W

Light Source High Power	SMD LED
Operating Voltage	AC100-240V
LED Operating Frequency	47~63Hz
Ambient Temperature	-40°+60°C
Life Expectancy	>50,000hrs
Beam Angle	45x90° 45x120°60 x120°
	Day Light=6500°K
Color Temperature(CCT)	Cool white=4000°K
	Warm white=3000°K
IP Rating	IP 65
Body and Lamps hade Material	Alluminum and PC

4 Product Guarantee

The validity of the product warranty is subject to the correct storage, installation, operation and
maintenance of this product. Failing to comply with the storage, installation operation and maintenance
routines will make the guarantee invalid.

5 User Guide

For outdoor use only.
Do not touch or replace when the power is on.
Do not look directly at the light when it's on.
Preferably do not directly expose to places of high temperatures.
Pay attention to the voltage before using.
Do not touch,twist or replace the lamp when the power is on.
Should be installed and maintained by professional persons.

6 NORMES

CE (LVD)	EN60598-1:2008; EN60598-2-1:1989
CE (EMC)	EN55015:2006; EN61547 :1995+A1 :2001 ; EN61000-3-2 :2006 ; EN61000-3-3 :1995+A1 :2001+A2 :2005
RoHS	2002/95/EC; 2006/66/EC; EPA3050B:1996; EPA3060A; EPA3052:1996, EPA7196A, EPA3540C, EPA8270C,
ISO 14001 Rev 2004 Environmental Management System
ISO 9001 Rev 2000 Quality Management System
