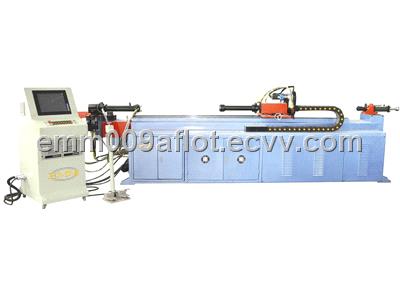

CNC pipe bending machine EM130

Supply Ability:	50 Piece/Pieces per Month
Shipping:	20-60 working days after order confirmed
Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Related products from verified members

Portable Edge Branding Machin

Price:

Min. Order:
Damper Shell Molding Equipment

Price:10000.00-500000.00 USD/Set

Min. Order:1 Set
Corner bending machine for rectangular bellow

Price:

Min. Order:
Horizontal accumulator

Price:

Min. Order:
Processing Machine Bus (DHY-150,DHY-200) Bus b...

Price:

Min. Order:
Single-End Hydraulic Tube Bender / Bending Mach...

Price:

Min. Order:1 Set
Rotary Scrubber

Price:

Min. Order:

Product Details

Place of Origin:	Jiangsu in China
Packaging Details:	standard export package

Specifications

Features:

² Automatic recognition of power in machine and work piece, the processing is both quick and good

² Slow returning core, boosted by barrow, improving the appearance of the angle.

² The whole operation is in the computer, simple, quick and correct

² Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct

² Rebound test: comparison test on the features of lots of pipe materials

² Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies.

² Automatic drawing of the graphics of dies-clear help to develop new products

² Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles

² Passwords, keys, working hours/ recordings of quantities, are applied to management of production.

3. Instructions of Extreme machinery manufacture Co. (EMM)

CNC pipe bending machine

EMM CNC pipe bending machine seeks excellence on the control aspect. Its characteristics are as following:

1. Electric control system: adopts famous controller in Japan, for example, the servo driver, servo motor, location mould group, CPU and so on from Mitsubishi Clubs or Yasukawa, which is of high capability and excellent steadiness.

2. Extra large CPU of Mitsubishi can store 400 groups of file editions. When the storage space is inadequate, transform software can be installed in the computer and then the files can be stored in hardware so as to expand edition groups indefinitely.

3. WINDOWS operating system is installed in the industrial computer to match with Mitsubishi servo system; therefore, apart from the advantage of Mitsubishi servo drive, it owns the convenience of file management of WINDOWS operating system. lt can also store the files in hardware or disk to indefinitely expand edition groups.

4. Function of automatically detecting error and fault, which is displayed on the screen for operators to cancel the fault easily.

5. All the process documents are inputted by touch control screen.

6. Each bending tube can set compensation value, speed and gap between stripping according to the variety of different material.

7. Every bending of the tube can separately compile 5 move orders, 10 speed matched for operators'' use. It will improve working efficiency and decrease interfere points of tube pieces.

8. Touch control screen can transform between Chinese and English. Display of other languages can be ordered according to your demands.

9. Material feeding way can be selected in straight or clip feed according to different needs.

10. X-Y-Z coordinate can be automatically changed into YBC process value.

11. Documents are protected by key to prevent them from being amended by random.

12. Electric system is matched with heat exchanger for automatic cooling. You can also select numerical control air conditioner to maintain the use life of electric system.

13. It is equipped with automatic adding oil system to decrease friction between bending tubes, prolong use life of mandrel and guarantee the quality of bending tubes.

14. The documents displayed on the screen can be printed by connecting a printer.

15. On the machine stage can be added with communications interface and data machine. It is connected to EMM Cooperation by telephone lines for remote control of engineer to Real-time monitoring, software updating, troubleshooting and so on.

16.The positions of material entrance, safety, input mould interfere and conduct mould interfere of material feed trolley can be set by hand and automatically memorized to cancel man measurement error and loss of machine collision.

17. Material feed axis will automatically detect itself before its operation to avoid the clash with machine.

18. Decomposition action can be collected at the time of actual bending so as to observe interfere points, amend movement and improve efficiency.

Technical Specification and Capacity

Specification/Model		EM130CNCX2A-1S	Remark
Max bending capability		Φ130mm×8mm	1. The Minimum bending diameter based onthe pipe diameter 2.The Max bending diameter can according to the customer’s requirement 3.The Max length of mandrel can according to customer’s requirement
Max bending radius		R400mm
Min bending radius		R50mm
Max bending angle		190°
Max feeding length		3000mm
feeding method		direct feeding clamping feeding
Working speed	Bending speed	Max 30°/s
	Rotary speed	Max 160°/s
	Feeding speed	Max 800mm/s
Working accuracy	Bending accuracy	±0.15°
	Rotary accuracy	±0.1°
	Feeding accuracy	±0.1mm
Information inputting method		1. axis(X . Y. Z) 2.working value(Y. B. C)
Bending method		Hydraulic bending
Power of rotary servo motor		2kw
Power of feeding servo motor		5kw
Max bending groups		1. 12 2. 33
Max storing components		1. 330 2. 125
Motor power		22kw
Oil pressure		12 Mpa
Size		6115 x 1860 x 1265mm
Weight		8000kg
